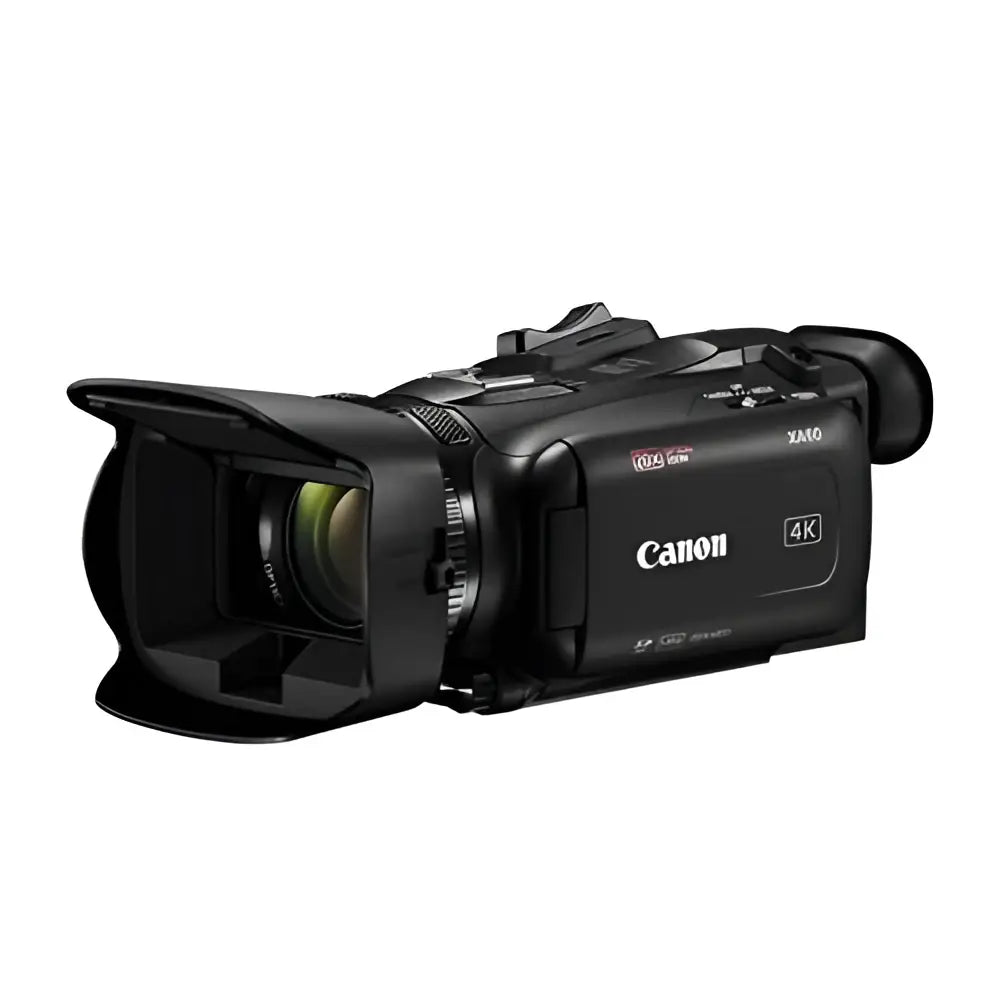

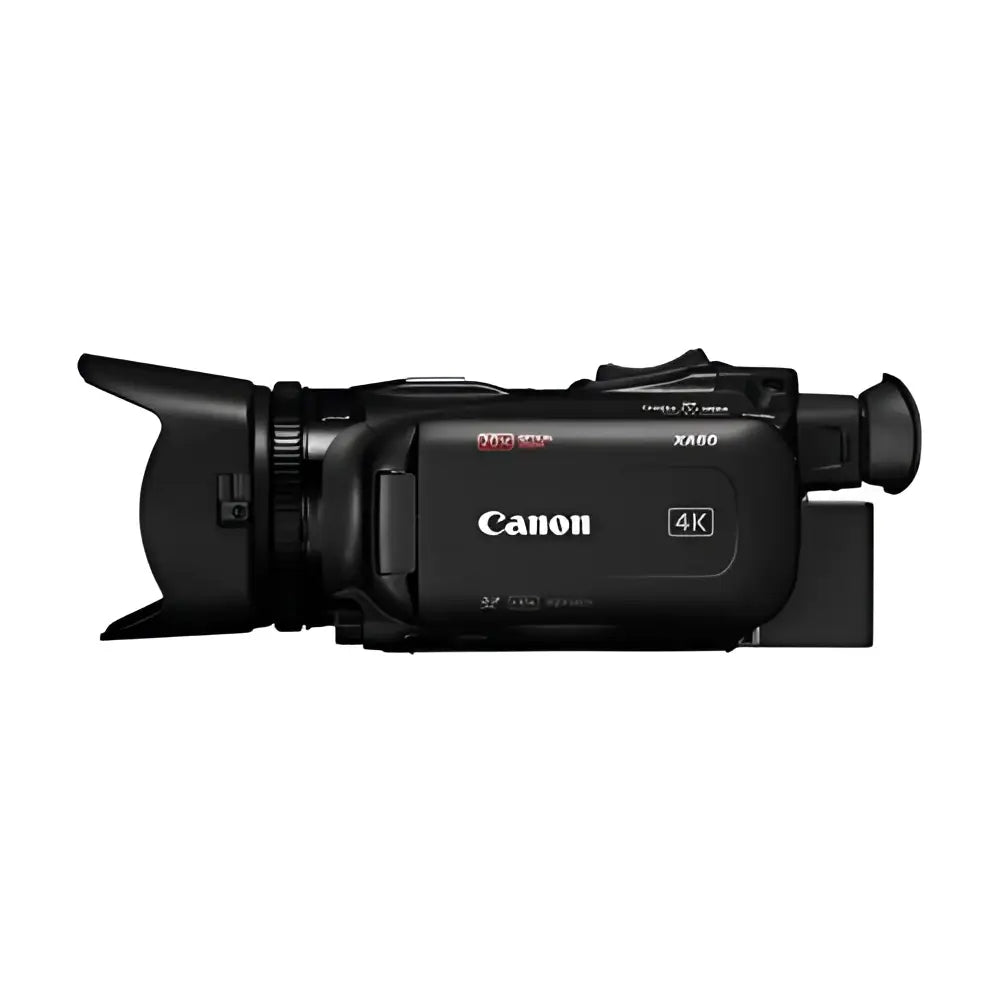

Canon XA60 Professional UHD 4K Camcorder (With Hand Grip)

Model: 5733C006

  • £971.00
    Unit price per
  • Save £729

Stock available, 5-7 day lead time
  • FedEx tracked & insured delivery included
  • Customer service & returns by our UK team in Norfolk
  • Expert advice by phone and email
  • Photographic retail experience since 1995
Sold by Futronix Electronic Limited (HK). UK VAT is not charged at checkout.
Customer service, returns and after-sales support by our UK team in Norfolk.
All products are brand new (sealed box) with standard accessories.

Product details

  • Description
  • Specifications
  • Features
  • Reviews
Description

Canon XA60 Overview

The Canon XA60 Professional UHD 4K Camcorder combines a 1/2.3-type CMOS sensor, DIGIC DV 6 image processor, integrated 20x optical zoom lens and detachable professional handle unit within a compact video-focused body. Designed for documentary recording, interviews, conferences, educational productions and event coverage, it offers dedicated camera controls, professional audio inputs and flexible recording options without requiring an interchangeable-lens setup.

Its 4K UHD recording capability supports detailed video capture at 3840 × 2160 resolution, with XF-AVC and MP4 file formats accommodating different editing and delivery requirements. Full HD recording benefits from Over Sampling HD Processing, which uses information from the 4K sensor to produce detailed 1920 × 1080 footage. Recording quality depends on available light, selected settings and the limitations of the smaller sensor.

The built-in Canon 20x optical zoom covers approximately 29.3–601mm in 35mm-equivalent terms during 4K recording with Standard IS or stabilisation disabled. This extended range supports wide compositions, medium framing and distant subjects from a fixed camera position. A powered zoom rocker provides controlled focal-length adjustments during continuous recording, making the camcorder particularly useful when a camera operator cannot move closer to the action.

Professional operation is supported by Hybrid AF, five-axis image stabilisation, dual SD card slots and a detachable top handle incorporating two XLR audio inputs. The handle also provides recording controls and an infrared light for supported low-light applications. A 3.5-inch touchscreen and tiltable OLED viewfinder give operators alternative ways to monitor the image in changing lighting conditions.

Within the professional camcorder range, the XA60 occupies a compact production category where reliable fixed-lens operation, optical reach and external audio integration take priority over large-sensor cinematic rendering. Its built-in lens avoids the separate lens requirements of an interchangeable-lens system, although that also limits future changes to optical characteristics.

4K UHD Imaging and DIGIC DV 6 Processing

The XA60 uses an approximately 8.29-megapixel effective 4K CMOS sensor and Canon's DIGIC DV 6 processing system. This combination supports UHD recording with 8-bit 4:2:0 colour sampling, providing files suitable for conventional event production, documentary editing, educational material and corporate video workflows.

In its 50 Hz recording system, 4K UHD capture reaches 25p. The corresponding 59.94 Hz configuration supports frame rates approaching 30p, subject to the selected recording mode. This distinction matters when matching footage with other cameras, preparing content for particular delivery systems or planning projects involving controlled lighting and mains-powered fixtures.

XF-AVC records UHD footage at up to 160 Mbps using an MXF-based workflow, whereas MP4 provides an alternative format with UHD bitrates up to 150 Mbps. The available recording settings influence file size, storage requirements and editing compatibility. The XA60 does not offer internal 4K 50p or 60p capture, a limitation for productions requiring high-frame-rate UHD acquisition.

For Full HD work, Over Sampling HD Processing converts information from the higher-resolution image sensor into 1920 × 1080 footage. This allows projects intended for HD delivery to benefit from the camera's 4K imaging architecture without necessarily recording the larger UHD files. The resulting image still depends on lens performance, exposure, subject movement and the selected compression settings.

An important distinction concerns colour grading. The XA60's 8-bit recording provides less tonal adjustment latitude than advanced 10-bit professional cameras. Accurate exposure and white balance during acquisition are consequently important, especially for scenes containing bright highlights, mixed lighting or subtle colour transitions.

Integrated 20x Optical Zoom and Framing Control

The built-in lens has a physical focal-length range of 3.67–73.4mm, equivalent to approximately 29.3–601mm in 4K UHD recording with Dynamic IS disabled. Its maximum aperture changes from f/1.8 at the wide end to f/2.8 at telephoto, giving the camera a useful optical range without the need to attach another lens.

At shorter focal lengths, the XA60 accommodates wider interiors, groups of speakers, conference stages and establishing footage. Extending the zoom allows closer framing of presenters, performers or distant details from an established recording position. This flexibility is valuable for long ceremonies and events where frequent repositioning could interrupt continuous coverage.

The powered zoom mechanism permits smoother changes in framing than rapid manual rotation of a conventional photographic zoom ring. Zoom behaviour remains dependent on the selected control and operating speed, and longer focal lengths make camera movement more noticeable. A stable support system can therefore become important during extended telephoto recording.

Canon also provides digital zoom options, but digital magnification is not equivalent to optical enlargement. Increasing digital zoom can reduce effective image detail because the resulting picture depends on electronic enlargement and processing. The optical range remains the more meaningful specification for evaluating usable lens reach.

Hybrid Autofocus and Manual Focus Operation

The Canon XA60 uses Hybrid AF, combining autofocus technologies to assist with subject acquisition and tracking during video recording. Operators can use the touchscreen to identify a focus position and adjust autofocus behaviour according to the intended shooting conditions.

Face detection and adjustable focusing controls support interviews, presentations and straightforward documentary coverage. These facilities reduce the need for constant manual adjustment during uncomplicated subject movement, although autofocus accuracy can still be affected by insufficient light, low-contrast subjects, obstructions and rapid changes in scene composition.

Manual focusing remains relevant when shooting through foreground objects, recording a stationary interview or managing a scene containing several competing subjects. An operator may prefer a fixed focus position when automated tracking could shift attention to an unintended area.

The autofocus system should not be confused with Canon Dual Pixel CMOS AF, which is used in other camera families. The XA60's Hybrid AF is a different architecture with its own capabilities and limitations. Its performance should be assessed according to the actual recording environment, not descriptions belonging to another Canon model.

Five-Axis Image Stabilisation for Handheld Recording

Canon combines optical stabilisation with electronic correction to help control camera movement during handheld video capture. Available modes include Standard IS, Dynamic IS and Powered IS, supporting different approaches to operating the camera.

Standard stabilisation is useful for general handheld work, where moderate movement could otherwise affect the recorded image. Dynamic correction is intended for more pronounced motion, including recording while walking, although it changes the effective field of view. Powered IS can support more stable framing at longer focal lengths when the operator is attempting to hold a relatively stationary composition.

Stabilisation does not eliminate every form of camera movement. Sudden jolts, fast pans and substantial telephoto magnification can still introduce visible instability. Electronic correction may also affect framing, so the appropriate setting depends on the desired composition and movement.

A properly supported video tripod remains beneficial for long interviews, conference recording and extended telephoto sequences. Handheld stabilisation improves operational flexibility but does not replace a stable platform when a production requires precise, repeatable camera positioning.

Professional XLR Audio and Detachable Handle Unit

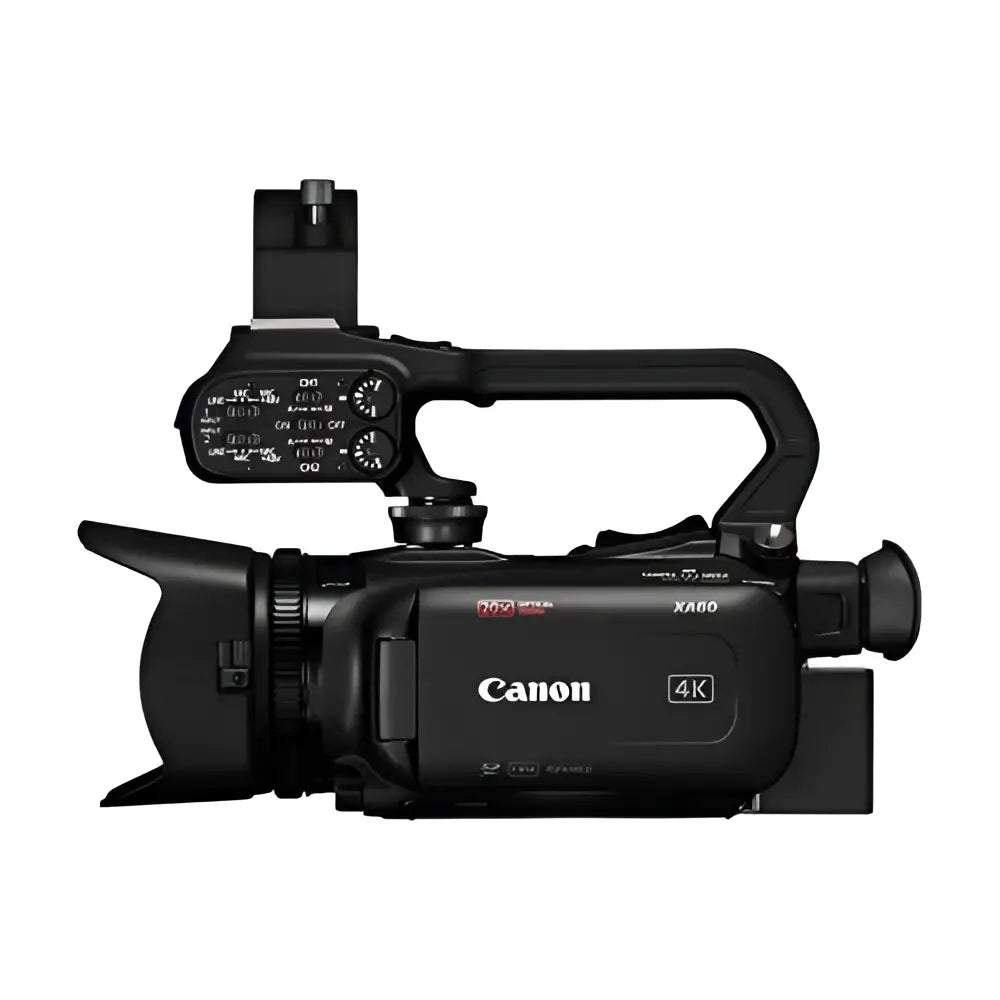

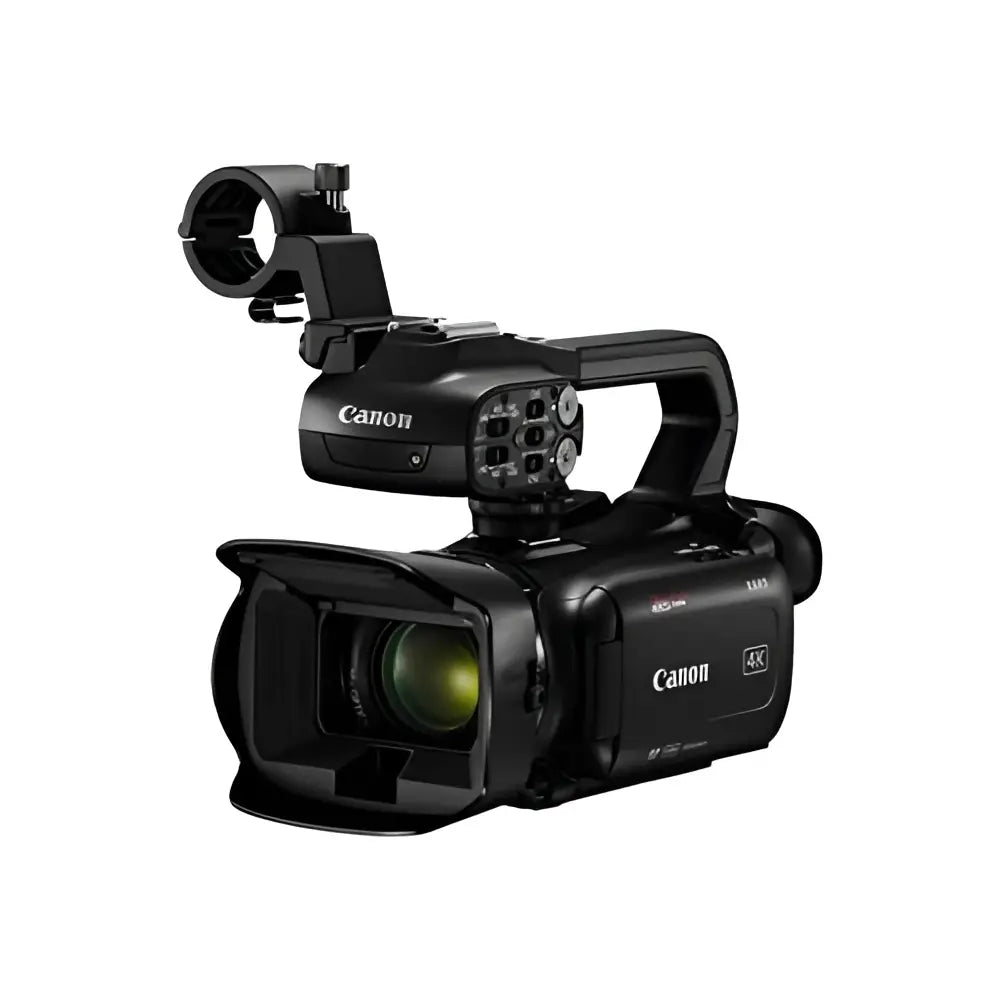

The included detachable handle expands the XA60's audio capabilities through two XLR inputs, providing connections for compatible professional microphones and external audio sources. This arrangement is particularly useful for interviews, presentations and productions where speech recording carries as much importance as image quality.

The camcorder supports four-channel linear PCM audio in applicable recording modes. Multiple audio channels can accommodate different microphone arrangements, including an external microphone paired with another supported source. Channel availability and audio format depend on the recording configuration, and four-channel LPCM is not available in every mode.

XLR connectivity allows compatible professional microphones to be integrated with the camera's audio controls. Appropriate input selection, level adjustment and phantom-power configuration are necessary according to the connected equipment. A mixing desk or line-level output should not be treated as interchangeable with a microphone signal without suitable level matching.

The detachable handle incorporates a microphone holder, accessory shoe, zoom control, recording trigger and tally indicator. Its upper grip provides a secure carrying and operating position for low-angle recording or mobile coverage. Removing the handle reduces the assembled camera's profile but also removes the XLR terminals and handle-mounted facilities.

The body retains its internal microphone and supports 3.5mm audio connections, allowing a reduced configuration when the additional handle controls are unnecessary. This distinction is important because professional microphone connections are part of the detachable assembly, not permanently integrated into the compact body.

Dual SD Card Slots and Recording Continuity

The XA60 provides two SD memory-card slots supporting SD, SDHC and SDXC media. Recording modes include simultaneous recording and relay recording, offering different ways to manage footage across two cards.

Simultaneous recording can create two copies of supported recordings on separate cards, providing an additional layer of protection against a single media failure. It does not replace transferring footage to independent storage after capture, and a camera-level problem can still affect both copies.

Relay recording allows compatible recording operations to continue onto another installed card when the active card reaches capacity. Actual continuity depends on the operating configuration, recording format, available storage and correctly prepared media.

For high-bitrate UHD acquisition, sustained card-writing performance matters more than an advertised maximum read speed. The memory card collection includes SD storage options, although a card's precise speed classification must be checked against Canon's requirements for the selected format.

A SanDisk Extreme PRO 128GB SDXC UHS-II card is an example of high-performance full-size SD media. Its higher-speed capabilities do not mean that the XA60 necessarily uses every aspect of the card's available interface bandwidth. Capacity, compatibility and sustained write performance are the practical considerations.

At 160 Mbps, the nominal video-data rate corresponds to approximately 72 GB per hour before accounting for audio, metadata and file-system differences. This makes card capacity an important operational consideration for long conferences, ceremonies and uninterrupted event coverage.

USB-C Streaming and HDMI Video Output

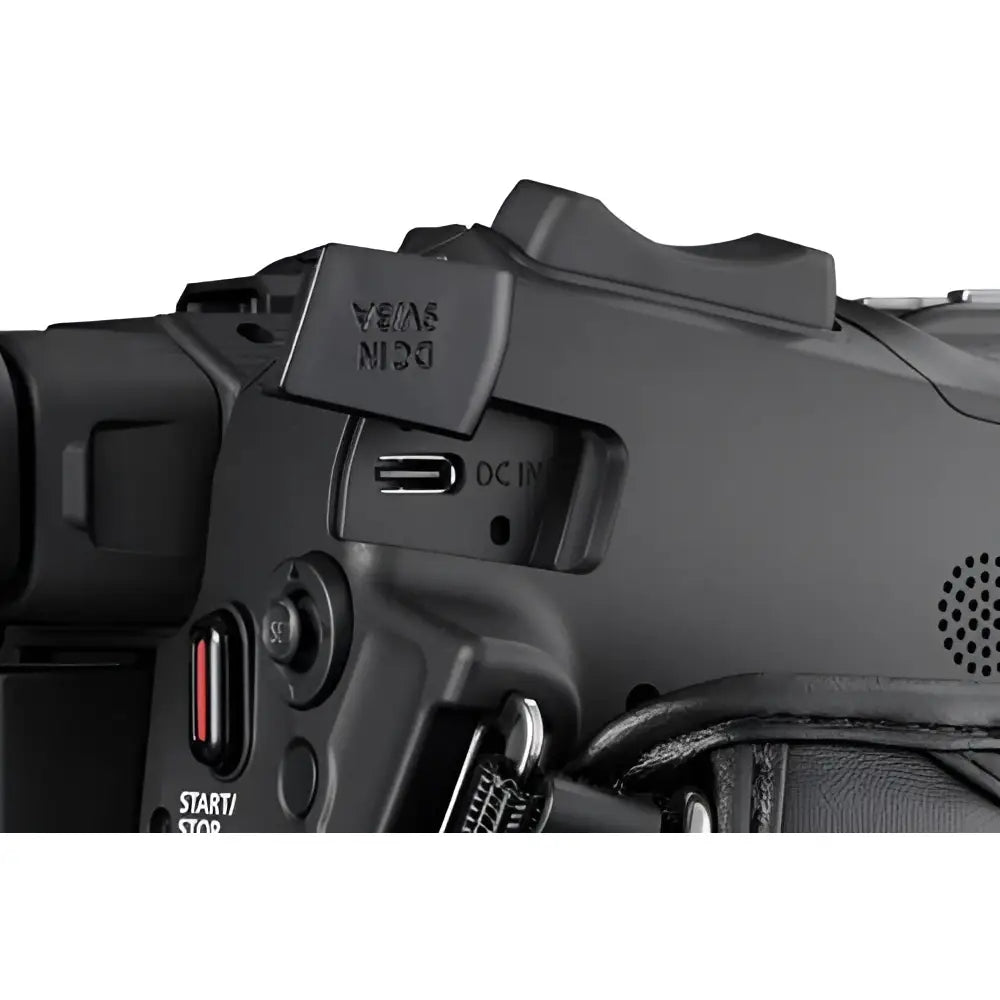

The XA60 supports USB Video Class (UVC) operation through its USB-C connection. A compatible computer can recognise the camcorder as a video source for supported communication or streaming software, providing a relatively direct route into computer-based productions.

Canon describes UVC operation as an HD streaming facility, so it should not be confused with transmitting the full internal 4K recording signal over USB-C. A compatible cable and suitable computer configuration are required. Canon also specifies that audio is not carried through this UVC connection, meaning streaming setups may need an independent audio feed.

The camcorder's mini-HDMI output provides another route for video monitoring and compatible external production equipment. This can be useful for a recording station, external display or supported video switcher. HDMI compatibility and supported signal formats should be established from the connected system's requirements.

The XA60 does not contain a built-in 3G-SDI output. Productions using SDI-based switchers or longer professional cable runs may therefore require additional conversion equipment, with the resulting signal format and latency considered as part of the complete installation.

USB-C functionality should also not be mistaken for built-in wireless networking. The XA60 has no integrated Wi-Fi or FTP transfer capability; wireless production workflows require separate supported equipment.

Infrared Recording and Low-Light Conditions

The Canon XA60 infrared recording mode supports video capture in very low ambient light, making it relevant to specialist documentary work, observation and controlled low-light recording. The detachable handle incorporates an infrared light that can illuminate nearby subjects during supported IR operation.

Infrared footage should not be treated as equivalent to conventional full-colour recording under suitable illumination. Its purpose is to capture a usable image under conditions where ordinary visible-light exposure may be inadequate. The appearance of the footage differs from normal colour video, and effective illumination depends on the scene and the infrared source.

For standard colour recording, the 1/2.3-type sensor imposes practical limitations in dark venues. Raising gain can make the image brighter but may increase noise and reduce fine detail. A wide lens aperture helps with available-light capture, although scene illumination remains important for image quality.

Stage performances, indoor ceremonies and evening events can contain particularly challenging combinations of dark surroundings and bright spotlights. Exposure control and suitable lighting can be more important than increasing gain aggressively. The XA60's infrared function serves a separate purpose from improving ordinary colour image quality in those environments.

Compact Body, OLED Viewfinder and Power Management

The camcorder has a 3.5-inch capacitive LCD touchscreen with approximately 2.76 million dots and a tiltable 0.36-inch OLED viewfinder with approximately 1.77 million dots. These interfaces support framing, exposure monitoring and menu operation across handheld and tripod-mounted configurations.

The OLED viewfinder can be useful in strong ambient light when reflections make the larger screen difficult to observe. The touchscreen provides more space for focus-point selection and on-screen controls, making it useful during interviews and controlled setups.

Canon specifies a body-only weight of approximately 740g, excluding the detachable handle and other accessories. A configuration including the handle, hood, battery and representative recording media is approximately 1.13kg. This distinction matters when evaluating transport weight, camera support or prolonged handheld operation.

Power is supplied by a compatible BP-820 lithium-ion battery or the supported external power arrangement. Actual operating duration varies with recording settings, display usage, zoom activity, temperature and attached accessories.

The Canon BP-820 battery is also represented as an individual accessory product, relevant to productions requiring additional operating time. Battery compatibility does not establish the quantity of batteries included with a particular retail package.

Canon XA60 Frequently Asked Questions

Does the Canon XA60 record in 4K?

Yes. The XA60 records 3840 × 2160 UHD footage using XF-AVC or MP4, with 25p operation in its 50 Hz system. It uses 8-bit 4:2:0 recording and supports bitrates up to 160 Mbps for XF-AVC. The camera does not provide internal UHD recording at 50p or 60p.

Does the Canon XA60 have Dual Pixel Autofocus?

No. The XA60 uses Hybrid AF, not Canon Dual Pixel CMOS AF. It supports touch-controlled focusing and available face-detection functions, but its autofocus architecture differs from the technology fitted to some larger professional Canon models.

Does the Canon XA60 support infrared night recording?

Yes. An infrared mode enables recording under very low ambient illumination, with an infrared light integrated into the detachable handle unit. The mode produces a different image appearance from conventional full-colour video and is not a substitute for adequate visible lighting during ordinary colour recording.

Can the Canon XA60 connect to a computer for live streaming?

Yes. The USB-C connection supports UVC HD video output to compatible computer software. Canon specifies that audio is not transmitted through this UVC connection, so a separate computer audio input or compatible audio interface may be necessary.

Does the Canon XA60 have built-in Wi-Fi?

No. Wireless networking and FTP transfer are not integrated into the XA60. Its principal external video connections are USB-C for supported UVC operation and mini-HDMI for compatible video equipment.

What is included with the Canon XA60 hand grip?

The standard package includes a detachable handle unit with two XLR inputs, a microphone holder, additional operating controls and an infrared light. Canon also lists the BP-820 battery pack, PD-E1 power adapter and lens hood with barrier among the standard supplied components.

Can the Canon XA60 use two SD cards at once?

Yes. Its dual SD slots support simultaneous recording in applicable modes and relay recording for extended media management. Recording behaviour depends on the selected format, card capacity and compatible operating settings.

Is the Canon XA60 suitable for low-light event filming?

The camera can record indoor and evening events, but its 1/2.3-type sensor limits ordinary low-light colour performance compared with larger-sensor models. Insufficient illumination may require higher gain, increasing visible noise. Infrared capture is available for specialist situations but produces different image characteristics.

What is the difference between the Canon XA60 and XA65?

The XA65 shares much of the XA60's imaging and recording architecture but adds professional 3G-SDI connectivity. The XA60 uses HDMI for external video output and does not include an SDI terminal. This difference matters when integrating with SDI-based video switchers and broadcast infrastructure.

Can the Canon XA60 use Canon RF lenses?

No. Its 20x optical zoom lens is permanently integrated, and the camera does not use the RF interchangeable-lens mount. The fixed design provides a broad focal range without lens changes but does not support replacement lenses from Canon's mirrorless system.

What battery does the Canon XA60 use?

The XA60 is compatible with Canon's BP-820 battery system, and Canon identifies the BP-820 among the standard supplied accessories. The compatible BP-828 provides another supported battery option. Actual runtime depends on camera operation and recording conditions.



Specifications

Canon XA60 Technical Specifications

Image Sensor and Processing

  • Camera type: Professional fixed-lens 4K camcorder
  • Image sensor: 1/2.3-type CMOS
  • Total sensor pixels: Approximately 21.14 megapixels
  • Effective video pixels: Approximately 8.29 megapixels
  • Image processor: DIGIC DV 6
  • Maximum recording resolution: 3840 × 2160
  • Colour recording: 8-bit 4:2:0 for supported UHD formats
  • HD processing: Over Sampling HD Processing

Built-In Lens

  • Optical magnification: 20x
  • Actual focal length: 3.67–73.4mm
  • 35mm-equivalent UHD range: Approximately 29.3–601mm with Dynamic IS disabled
  • Maximum aperture: f/1.8–2.8
  • Aperture diaphragm: Eight blades
  • Filter thread: 58mm
  • Lens design: Fixed, non-interchangeable zoom
  • Stabilisation: Optical with electronic correction; available modes include Standard, Dynamic and Powered IS

Video Recording

  • Recording containers: MXF for XF-AVC; MP4
  • 4K UHD: Up to 25p in 50 Hz operation
  • UHD bitrate: Up to 160 Mbps XF-AVC or 150 Mbps MP4
  • Full HD: Up to 50p in 50 Hz operation
  • Regional/system frequency: Supported 59.94 Hz operation allows corresponding 29.97p and 59.94p options
  • Compression: H.264/AVC-based recording
  • Special modes: Slow and Fast Motion, infrared recording, supported on-screen information recording
  • Storage: Two SD/SDHC/SDXC slots
  • Recording options: Supported simultaneous and relay recording modes

Autofocus and Display

  • Autofocus: Hybrid AF
  • Focus controls: Touchscreen focus selection and manual operation
  • LCD: 3.5-inch capacitive touchscreen, approximately 2.76 million dots
  • Viewfinder: 0.36-inch tiltable OLED EVF, approximately 1.77 million dots

Audio and Connections

  • Professional audio inputs: Two XLR terminals on detachable handle
  • Internal audio: Built-in stereo microphone
  • Additional microphone input: 3.5mm stereo mini-jack
  • Monitoring: 3.5mm headphone output
  • Audio capability: Up to four-channel linear PCM in supported modes
  • Video output: Mini-HDMI
  • USB: USB Type-C with UVC computer video capability
  • Remote connection: Dedicated wired remote terminal
  • Wireless networking: No built-in Wi-Fi
  • SDI: Not included
  • Infrared illumination: Integrated into detachable handle

Physical Specifications and Power

  • Body dimensions: Approximately 109 × 84 × 182mm
  • Body weight: Approximately 740g
  • Assembled shooting weight: Approximately 1,135g, depending on fitted accessories
  • Power system: Compatible BP-820 battery and supported external power adapter
  • Lens colour/body finish: Black
  • Manufacturer product code: 5733C006

Manufacturer-Listed Standard Package

  • XA60 professional camcorder
  • Detachable handle unit
  • PD-E1 USB power adapter
  • BP-820 battery pack
  • Lens hood with integrated lens barrier
  • Microphone holder
Features

Canon XA60 Features

Dedicated Camcorder Handling for Extended Recording

The XA60's fixed zoom lens, hand strap and physical recording controls create an operating layout designed around video acquisition. A traditional interchangeable-lens camera can offer larger sensors and different optical designs, but it generally requires a separate lens and may demand additional accessories to match the XA60's integrated audio arrangement.

The side-mounted LCD, accessible zoom control and recording trigger support single-operator productions where equipment must remain manageable during a long session. Detachable handle controls provide an alternative operating position for mobile shots, and the compact body can be used without the handle when reduced size has greater value.

Recording Formats for Different Post-Production Workflows

XF-AVC and MP4 serve different media-management requirements. XF-AVC provides an MXF-based recording option suited to compatible professional editing environments, and MP4 offers a widely supported container for straightforward file handling. Both operate within the camera's 8-bit recording architecture.

Selecting a recording format affects required card capacity, data-transfer time and compatibility with existing post-production systems. The camera's recording options are meaningful for event editors who need predictable files, but they do not introduce the high-bit-depth internal capture offered by more advanced professional video cameras.

Full-Range Optical Coverage Without Changing Lenses

The built-in lens covers a considerable range between wide-angle and telephoto framing. This arrangement can reduce interruptions during ceremonies, conferences and documentary work because an operator can reframe within the optical range without removing the lens.

The design also creates a fixed optical limit. Productions requiring a wider field of view, specialised cinema lenses or a markedly different depth-of-field character cannot simply replace the XA60's integrated lens. That restriction is balanced against the convenience of a single dedicated zoom mechanism.

External Audio Integration for Interviews and Events

Two handle-mounted XLR connections support professional microphones, allowing a more substantial recording configuration than cameras limited to one consumer microphone socket. Four-channel LPCM capability provides flexibility for supported combinations of sound sources, although correct input assignment remains essential.

This is especially important for interviews, lectures and documentary production, where clear dialogue can determine the usefulness of the recording. The handle-mounted inputs are part of the XA60's actual product configuration and should not be confused with separately purchased XLR adapters used by some mirrorless systems.

Compact Streaming and Monitoring Workflow

USB-C UVC functionality supports computer-recognised HD video transmission without turning the XA60 into a network-enabled camera. HDMI provides a separate video connection to compatible monitoring or production equipment, supporting workflows where an operator needs to record internally and supply an external image.

The limitations are equally important. UVC does not supply the full internal 4K recording format, the USB video feed does not include audio, and the camera lacks integrated Wi-Fi and SDI. These distinctions help determine the additional equipment required for streaming and live production.

Recording Configuration for Different Production Priorities

The XA60's strongest combination is extended optical reach, professional audio and manageable size. Other recording systems may prioritise high-frame-rate 4K footage, larger sensors or broadcast networking.

For instance, the Panasonic HC-X1200 4K camcorder occupies a different position through its 24x zoom and higher UHD frame-rate options. The Panasonic HC-X1600 adds wireless control and more advanced recording facilities, making connectivity and frame-rate requirements significant distinctions.

Sensor priorities create another separation. The Panasonic HC-X20 uses a larger 1.0-type imaging sensor, addressing applications where low-light response and image rendering carry greater importance. At a more advanced production level, the Canon XF605 incorporates a larger sensor, Dual Pixel CMOS AF and 10-bit professional recording options.

The XA60 therefore remains a distinct fixed-lens product: its primary strengths are a compact recording configuration, long optical zoom, detachable XLR handle and straightforward professional video controls. Higher-end colour processing, interchangeable optics, integrated wireless networking and SDI connections are outside its intended capability set.
