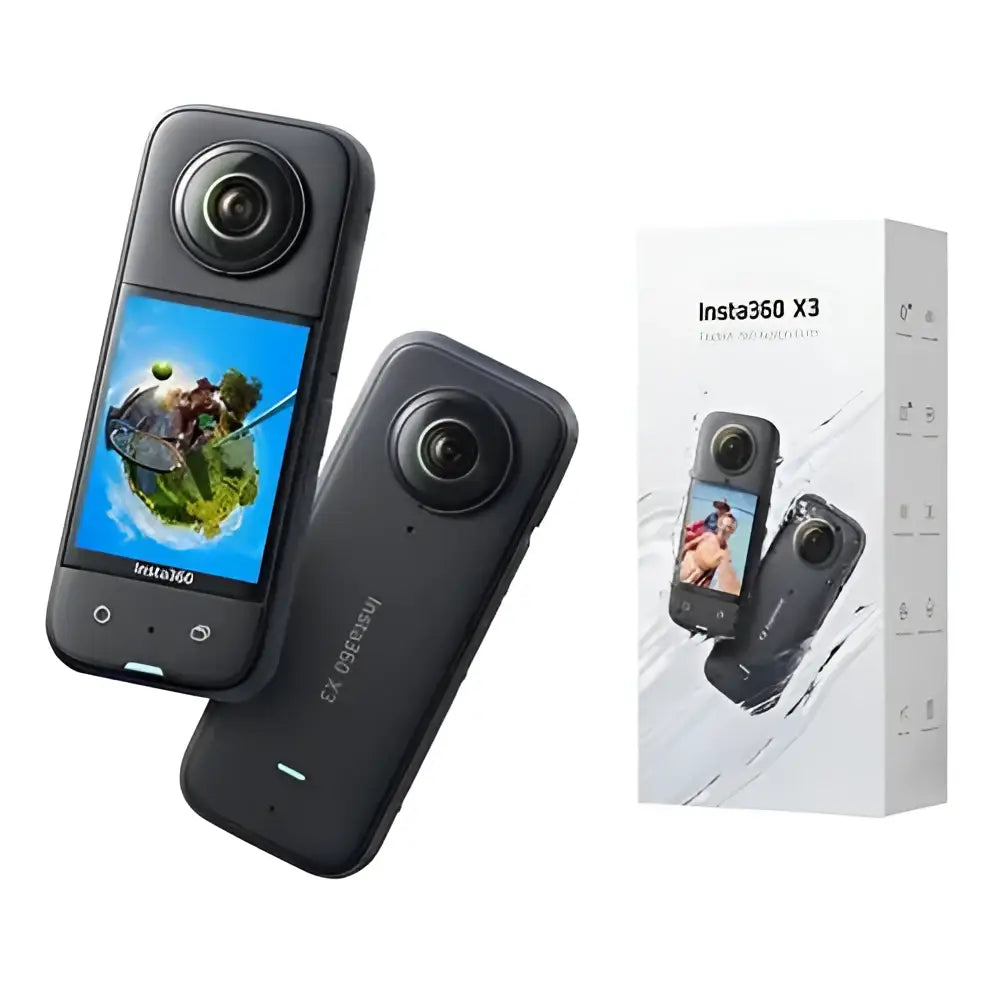

Insta360 X3 360° Camera

Insta360 X3 Overview

The Insta360 X3 is a dual-lens 360-degree action camera designed for immersive video recording, panoramic photography and creative outdoor filming. Equipped with two 1/2-inch 48MP CMOS sensors, it records 5.7K spherical video at up to 30fps and captures 72MP panoramic photographs. Its distinctive recording system captures the complete surroundings, allowing different viewing angles, perspectives and aspect ratios to be created from a single recording.

Unlike conventional action cameras with a fixed recording direction, the Insta360 X3 captures the scene around the camera through two opposing fisheye lenses. The resulting spherical footage supports reframing into horizontal, vertical and square compositions through Insta360's editing software. This makes the camera particularly useful for motorcycling, cycling, skiing, travel recording and solo video production, where subjects and camera positions change throughout an activity.

The Insta360 X3 action camera combines FlowState Stabilisation, 360° Horizon Lock, Active HDR, 4K Single-Lens Mode and an Invisible Selfie Stick effect in a compact 180g body. A 2.29-inch touchscreen provides direct control over recording settings, and the waterproof construction supports immersion to 10 metres under specified conditions. Its main limitations concern fine detail after extensive reframing, low-light performance and the vulnerability of its exposed fisheye lenses.

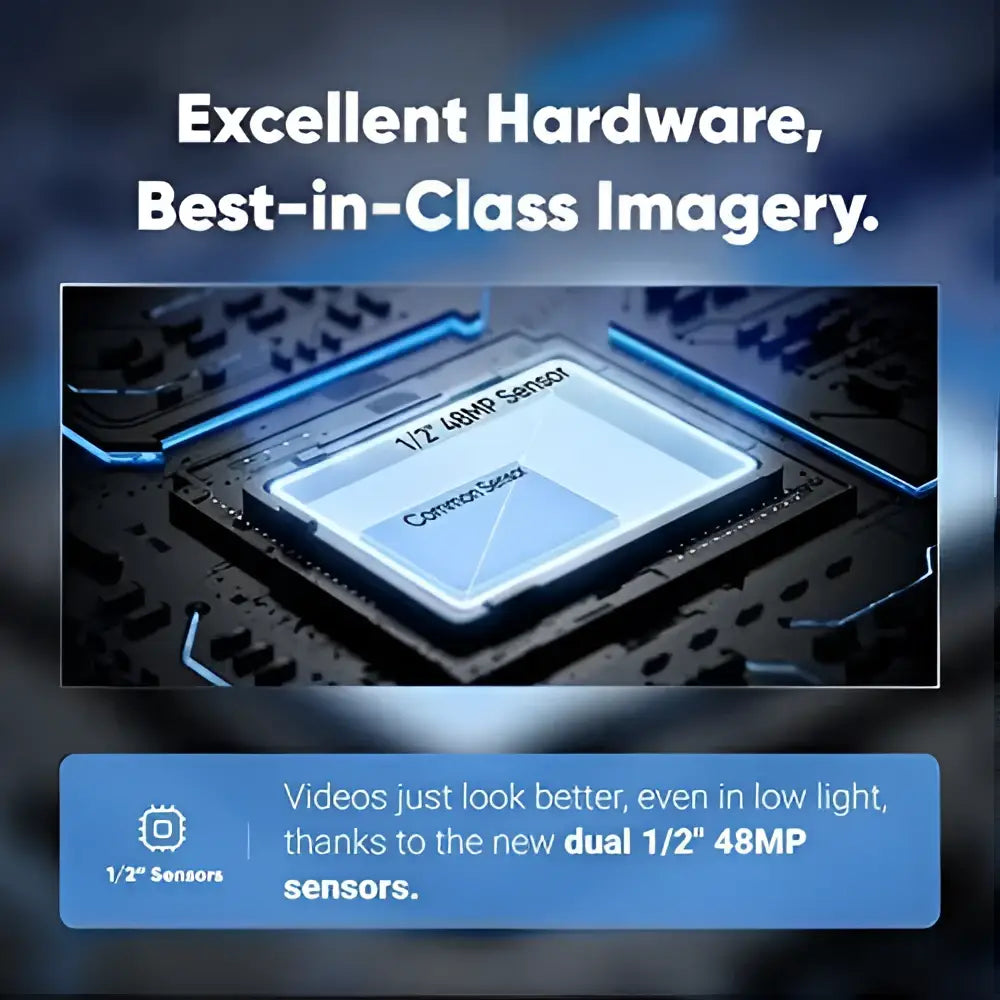

Dual 1/2-Inch CMOS Sensors and 360-Degree Imaging

The camera incorporates two 1/2-inch CMOS sensors, each with a resolution of 48MP. Both sensors operate behind dedicated fisheye lenses, capturing overlapping views that combine into a complete spherical image. This design records the environment above, below and around the camera, preserving areas that would normally fall outside a conventional action camera's field of view.

The larger sensor format compared with the earlier Insta360 ONE X2 supports higher-resolution still photography and improved image capture capabilities. Each lens has an f/1.9 aperture and a 6.7mm equivalent focal length, providing the extremely wide perspective required for 360-degree recording. The lenses remain fixed, with no optical zoom or interchangeable lens system.

The dual-lens configuration proves particularly valuable during activities involving unpredictable movement. A cyclist passing another rider, a skier changing direction or a traveller walking through a crowded location remains part of the captured environment even when the original camera orientation points elsewhere. The camera records all these directions simultaneously, leaving final composition decisions for editing.

Objects close to the camera require careful positioning because the two lenses record slightly different perspectives. This physical separation creates stitching limitations around nearby objects, particularly mounting brackets, hands and equipment crossing the lens overlap.

5.7K 360 Video Recording

The Insta360 X3 records 5.7K spherical video at 5760 × 2880 pixels, supporting 24fps, 25fps and 30fps. This recording format retains detail across a complete 360-degree scene and supplies the source material for producing multiple conventional video perspectives from one take.

Its 5.7K specification refers to the full spherical recording, not to a standard rectangular image extracted from that footage. Reframing into a conventional 16:9 composition uses only a portion of the captured pixels. A broad perspective retains comparatively greater detail, whereas substantial digital zooming produces softer results, especially around distant subjects and fine textures.

For outdoor recording, the advantage lies in compositional flexibility. A single mounted recording captures the rider, road, surrounding landscape and activity behind the camera. Different segments of that footage support separate editing perspectives without physically repositioning the device.

The camera's maximum video bitrate reaches 120Mbps, providing relatively substantial recording data for detailed spherical scenes. Compression, lighting conditions, subject movement and export settings still influence final image quality. Larger displays expose limitations that remain less noticeable in short mobile videos.

Active HDR and Daylight Video Performance

Active HDR expands the range of highlight and shadow information captured in supported 360-degree video settings. The X3 supports Active HDR at up to 5.7K30fps, helping preserve tonal differences in scenes containing bright skies, shaded paths and reflective outdoor surfaces.

The feature has particular value during daylight activities where light changes across the surrounding environment. A recording may contain direct sunlight in one direction and darker scenery in another. Active HDR assists with balancing those differences, reducing the loss of visible information in some highlights and shadows.

Image quality remains strongest under sufficient natural or artificial illumination. Bright conditions allow the sensors to retain cleaner textures, stronger colour separation and reduced image noise. The fixed f/1.9 lenses offer a relatively wide aperture, but limited sensor area restricts performance in dark scenes.

Evening streets, poorly illuminated interiors and night-time action introduce greater noise and reduced fine detail. Movement in low light also increases the chance of motion blur. FlowState processing addresses camera shake, not blur caused by subject movement during exposure.

For daylight travel recording, outdoor sports and short social media videos, the X3's spherical capture remains useful. Recording conditions have a substantial effect on the amount of detail retained after editing.

4K Single-Lens Mode for Conventional Video

The Insta360 X3 camera includes a dedicated Single-Lens Mode that records conventional wide-angle video from one side of the camera. Its maximum recording resolution reaches 4K at 30fps, with additional options including 3.6K at up to 60fps and lower resolutions for different recording requirements.

Single-Lens Mode changes the camera's operation from complete spherical capture to fixed-direction recording. This reduces the need for extensive reframing and suits straightforward videos where the intended viewpoint remains established throughout filming. First-person walking footage, cycling routes, stationary scenes and simple handheld recordings all benefit from this recording approach.

The 3.6K60 setting offers additional temporal resolution for faster movement and moderate slow-motion editing. Standard 4K30 remains the highest-resolution option in conventional Single-Lens Mode, creating an important distinction from newer action cameras offering higher frame rates at 4K.

Me Mode provides another self-filming option by keeping the person carrying the camera prominent in a ready-framed video. It supports a simplified workflow for personal travel clips and third-person perspectives without requiring the same extensive manual editing as unrestricted spherical footage.

The X3 therefore covers both creative 360-degree footage and ordinary wide-angle recording. Its fixed lens configuration and older processing system still place limits on directional sharpness and high-frame-rate capture compared with newer dedicated action cameras.

72MP 360-Degree Photography

The Insta360 X3 captures panoramic still photographs at resolutions of 72MP (11968 × 5984) and 18MP (5952 × 2976). The higher-resolution setting records greater detail across the complete sphere, supporting immersive photographs, scenic environments, room interiors and interactive photographic presentations.

Unlike a conventional high-resolution camera recording a single rectangular composition, the 72MP resolution covers every direction around the X3. A cropped conventional photograph contains a smaller proportion of the original pixel count. Image quality therefore depends on the selected viewing angle, crop size and the distance between the camera and its subject.

HDR photography supports scenes containing substantial brightness differences, and DNG RAW recording provides additional flexibility for compatible photo-editing workflows. PureShot photographs require processing through Insta360 Studio, making desktop editing relevant for advanced still-image work.

The spherical format works particularly well for recording the layout and atmosphere of a location. Interior spaces, scenic viewpoints and outdoor environments retain surrounding context inside one photograph. Stitching boundaries require attention around furniture, walls and other objects positioned extremely close to the camera.

For conventional portraits, distant subjects and photographs demanding precise optical framing, dedicated still cameras provide a different level of compositional control. The X3's photographic value comes primarily from immersive panoramic capture and flexible presentation.

FlowState Stabilisation and 360° Horizon Lock

FlowState Stabilisation combines gyroscope motion information with digital processing to reduce visible camera shake during recording. The system assists with smoothing footage captured from moving bicycles, walking routes, skiing equipment and compatible handheld mounting accessories.

A six-axis gyroscope supplies movement information used during stabilisation and orientation correction. Spherical recording also provides additional freedom to adjust the final viewing direction during processing, contributing to stable-looking footage despite physical camera movement.

360° Horizon Lock maintains a level horizon during substantial camera rotation in supported 360-degree recording workflows. The camera body may tilt or rotate during an activity without forcing the finished composition to follow the same orientation.

This function benefits dynamic footage involving corners, turns and changes in camera position. Mounting remains important, however. Loose fittings, excessive vibration and flexible supports can introduce movements that affect recording quality. Stabilisation does not restore sharpness lost through motion blur or correct badly positioned equipment.

The broader action camera collection includes conventional stabilised cameras and 360-degree models, each providing different approaches to movement correction and framing.

Invisible Selfie Stick and Third-Person Recording

The Invisible Selfie Stick effect uses the overlapping coverage of the two lenses and Insta360's stitching software to conceal a compatible selfie stick from the finished footage. This produces a floating-camera appearance, creating a third-person perspective without a separate camera operator.

The effect suits cycling, skiing, hiking, personal travel recording and other activities where the camera needs to capture both a subject and their surroundings. Extending the camera away from the person holding it creates additional space within the composition, making the resulting footage resemble a camera following the subject from a short distance.

Successful processing depends on the position and width of the supporting equipment. A narrow compatible stick aligned with the camera's stitching area generally produces the cleanest effect. Bulky accessories, offset mounts and objects crossing the stitching boundary may remain partially visible or introduce distortion.

The invisible-stick effect does not require an airborne camera or separate tracking device. Its appearance comes from spherical recording and editing software. The supporting selfie stick remains an accessory, and inclusion in this particular retail package has not been confirmed.

Stitching Accuracy and Minimum Subject Distance

The X3 combines footage from two lenses, creating an overlap region where the software aligns adjacent views. Because each lens records the scene from a slightly different position, objects very close to the camera may appear distorted or misaligned after stitching.

Insta360 specifies a minimum safety stitching distance of approximately 0.6 metres. Keeping important subjects beyond that distance reduces the effects of parallax and improves alignment between the two lens views. Larger objects positioned across the stitching boundary may still require adjustments to camera orientation.

Mounting hardware also affects stitching quality. Equipment extending beyond the normal invisible-stick area may appear as incomplete shapes or visible lines. Protective lens guards and underwater housings introduce additional optical surfaces, requiring appropriate processing settings.

These characteristics form part of the camera's physical recording system. The strongest results come from sensible subject placement, correctly aligned mounting equipment and accessories compatible with the X3.

2.29-Inch Touchscreen and Camera Controls

The Insta360 X3 uses a 2.29-inch touchscreen protected by tempered glass. Its vertical layout provides a relatively large control surface for a compact action camera, allowing recording modes, exposure settings, playback and camera configuration to be accessed directly.

The interface supports adjustments to resolution, frame rate, white balance, ISO and exposure parameters. Physical buttons provide an alternative during activities where touchscreen operation becomes inconvenient. Vibration feedback confirms selected interactions, and Voice Control 2.0 provides supported hands-free commands.

The touchscreen also assists with checking composition and reviewing recorded clips before transfer. Its display cannot reproduce the full spherical scene in a single ordinary perspective, so viewing direction changes remain part of the preview experience.

The body measures 46 × 114 × 33.1mm and weighs 180g. A standard 1/4-inch mounting thread supports compatible camera accessories, including appropriately rated poles, tripods and mounting adapters.

Waterproof Body and Lens Protection

The Insta360 X3 carries an IPX8 waterproof rating for immersion to 10 metres without additional housing. The rating depends on correctly secured battery and USB covers, intact rubber seals and undamaged body components.

Underwater recording presents a separate optical consideration. Water changes the refraction of light entering the fisheye lenses, affecting the stitching process. A compatible Invisible Dive Case supports improved underwater stitching and extends the specified operating depth to 50 metres.

The curved lenses require greater attention than the relatively protected front elements found on many conventional action cameras. Both lenses project beyond the body, increasing their exposure to scratches during handling, mounting and transport.

Compatible Sticky Lens Guards and lens caps offer additional protection. The X3's integrated optical lenses are not designed for routine user replacement, making prevention of lens damage especially important. Lens guards must be fitted correctly and matched with suitable stitching settings to maintain image quality.

1800mAh Battery and Recording Duration

The X3 uses a removable 1800mAh lithium-ion battery with a manufacturer-rated operating duration of approximately 81 minutes under specified test conditions. Actual recording time varies with resolution, frame rate, screen use, ambient temperature and active wireless functions.

Longer outdoor sessions benefit from careful power planning, especially when recording repeated high-resolution clips. Cold conditions may reduce available battery performance, and prolonged recording in warm environments increases the camera's thermal load.

USB-C charging provides a direct power connection, with the manufacturer specifying approximately 90 minutes for charging under a 5V/3A supply. Battery changes also allow recording to continue after a depleted battery has been removed, subject to the availability of separately charged compatible batteries.

The published runtime is a controlled measurement, not a guarantee for every shooting mode or environment. Actual endurance depends on the recording workload and camera configuration.

MicroSD Storage and Recording Reliability

The Insta360 X3 records onto removable microSD storage. It supports UHS-I cards with a V30 or faster speed class, formatted in exFAT, with capacities up to 1TB. Consistent sustained write performance is essential during high-resolution spherical recording.

The camera's maximum stated video bitrate reaches 120Mbps, making storage requirements more substantial than those of compressed conventional video recorded at lower bitrates. Longer sessions generate large source files, especially when recording numerous clips across an entire journey.

Cards with insufficient write speeds may cause recording interruptions or damaged files. Insta360 does not recommend UHS-II or UHS-III cards for this model, and cards exceeding the supported capacity introduce compatibility risks.

Original 360-degree footage also requires space during editing. Keeping source recordings alongside reframed exports increases storage requirements on phones, computers and backup drives.

Audio Recording and External Microphone Support

The X3 incorporates built-in microphones and recording options for stereo sound, wind reduction and directional audio processing. These functions support environmental sound, spoken commentary and general video recording without additional audio equipment.

Wind noise remains a limitation during cycling, motorcycling and high-speed outdoor activities. Microphone placement, movement speed and surrounding conditions influence recording clarity, and software processing cannot completely isolate speech from strong environmental noise.

A compatible X3 microphone adapter provides a 3.5mm external microphone connection. Dedicated microphone setups offer an alternative for spoken presentations, interviews and recordings with demanding audio requirements.

The camera also supports compatible wireless audio devices, although connection and recording functions depend on the individual microphone model. Not every generic USB-C microphone works through the camera's charging port.

Insta360 App, Reframing and Editing

The Insta360 mobile app supplies the main editing environment for spherical video. It supports manual reframing, keyframe animation, Deep Track 2.0, Auto Frame and export options for different viewing formats.

Keyframes define the intended camera direction at selected points in a recording. The software moves between those positions to create virtual pans and changing perspectives. Deep Track assists with maintaining a selected subject within the frame, and Auto Frame identifies possible compositions within the original spherical footage.

Insta360 Studio provides desktop processing for compatible files, including reframing, stabilisation-related controls and high-resolution export workflows. More complex projects benefit from additional processing power and storage capacity.

The main difference from conventional action-camera editing lies in the extra stage between recording and final delivery. Spherical footage preserves multiple potential compositions, but conventional video exports normally require selecting the final perspective.

Live-streaming functions and webcam operation extend the X3 beyond outdoor recording. Supported software connections allow it to operate as a webcam, and 360 live-streaming support provides additional applications for compatible platforms and workflows.

GPS Data and Activity Statistics

The Insta360 X3 does not contain a built-in GPS receiver. Recording location, route or speed information requires a supported connected device, including a smartphone running the Insta360 app, a compatible GPS remote or supported third-party activity data.

The Stats dashboard supports information including speed, altitude and recorded movement, subject to the available data and connection method. GPS information gathered through compatible devices can be synchronised with footage during editing, allowing visual statistics to appear in the finished recording.

Activity overlays apply to supported reframed exports, not unrestricted interactive 360-degree video. Connection settings and recording conditions require attention before an activity begins, as missing location information cannot automatically be reconstructed from a camera file recorded without suitable GPS data.

Outdoor Sports, Travel and Creative Recording

The Insta360 X3 suits outdoor activities where the recording direction changes frequently. Cycling and motorcycling benefit from its ability to preserve forward, rear and side perspectives within one spherical file. Compatible mounting equipment provides different camera positions, and horizon correction reduces distracting rotation in the finished composition.

Skiing and snowboarding take advantage of the combination of full-surround video, FlowState processing and third-person framing. Travel recordings benefit from preserving the surrounding environment, particularly at scenic viewpoints, on walking routes and during activities involving several moving subjects.

Solo video production gains flexibility from the Invisible Selfie Stick effect and Me Mode. For small interior spaces and property documentation, the 72MP panoramic photography function provides an immersive photographic record of the location.

The X3 has less practical value for distant subjects requiring optical zoom, demanding night-time cinematography or projects depending on immediate delivery of conventional video files. Its core strength remains capturing several possible viewing directions during one recording session.

Insta360 X3 Compared with Other Action Cameras

The X3 provides 5.7K spherical video, but newer models offer greater resolution and improved processing. The Insta360 X4 360° 8K Camera increases recording resolution to 8K30fps and supports 5.7K60fps, giving additional flexibility for digital reframing and faster movement. Its larger battery and updated lens protection also address practical restrictions of the earlier camera.

The Insta360 X4 Air brings 8K recording into a lighter body, and the Insta360 X5 adds newer imaging hardware, improved low-light processing and user-replaceable optical lenses. The differences become more significant during extensive cropping, recording in poor light and frequent outdoor use.

Other 360-degree systems include the GoPro MAX2 and DJI Osmo 360. Both follow the same broad principle of recording the surroundings for later reframing, but recording formats, lens maintenance and software workflows vary between systems.

A conventional single-lens model, including the GoPro HERO12 Black or DJI Osmo Action 6, concentrates its recording resolution in one direction. That format provides a more direct workflow for standard action footage, whereas the X3 retains additional perspectives inside its original recording. The differences between recording systems also appear across the wider 360 camera range and comparisons. The X3 remains distinct through its combination of spherical recording, relatively compact construction and established Insta360 editing workflow.

Frequently Asked Questions

1. Is the Insta360 X3 still worth buying in 2026?

Yes, the Insta360 X3 remains a useful 360-degree action camera for daylight travel, cycling, skiing and creative outdoor recording. Its 5.7K spherical video, FlowState Stabilisation and Invisible Selfie Stick effect remain practical features. The main compromises include reduced detail after extensive reframing, weaker low-light recording and shorter battery endurance compared with newer models.

2. Which is better, GoPro or Insta360 X3?

A conventional GoPro HERO camera offers sharper native single-direction recording and a simpler editing process. The Insta360 X3 provides greater freedom to alter camera angles after recording through its dual-lens spherical capture. GoPro suits straightforward action footage, whereas the X3 supports creative third-person perspectives and recording activities with unpredictable framing.

3. Is the Insta360 X3 or X4 better?

The Insta360 X4 has the stronger technical specification, offering 8K30fps spherical recording, 5.7K60fps video and improved battery endurance. The X3 records up to 5.7K30fps and remains capable of everyday 360-degree footage. The X4 delivers additional detail for reframing and greater flexibility for high-frame-rate recording.

4. Is the Insta360 X5 better than the X3?

Yes, the Insta360 X5 features 8K spherical video, newer sensors, improved low-light processing and user-replaceable optical lenses. These advancements improve recording flexibility and lens maintenance. The X3 retains the essential 360-degree functions but offers less detail after cropping and weaker image quality in demanding lighting.

5. What are the disadvantages of the Insta360 X3?

The main limitations include reduced image detail after substantial reframing, increased noise in low light, vulnerable protruding lenses and additional editing requirements. Its 5.7K resolution covers the complete sphere, resulting in lower effective resolution for conventional cropped video. The integrated optical lenses also require careful protection because routine user replacement is unsupported.

6. Is the Insta360 X3 waterproof without a case?

Yes, the Insta360 X3 has an IPX8 waterproof rating for depths up to 10 metres, provided the battery compartment, USB cover and seals remain correctly secured and undamaged. Underwater spherical footage requires a compatible dive case for proper stitching. The Invisible Dive Case supports recording at depths up to 50 metres.
