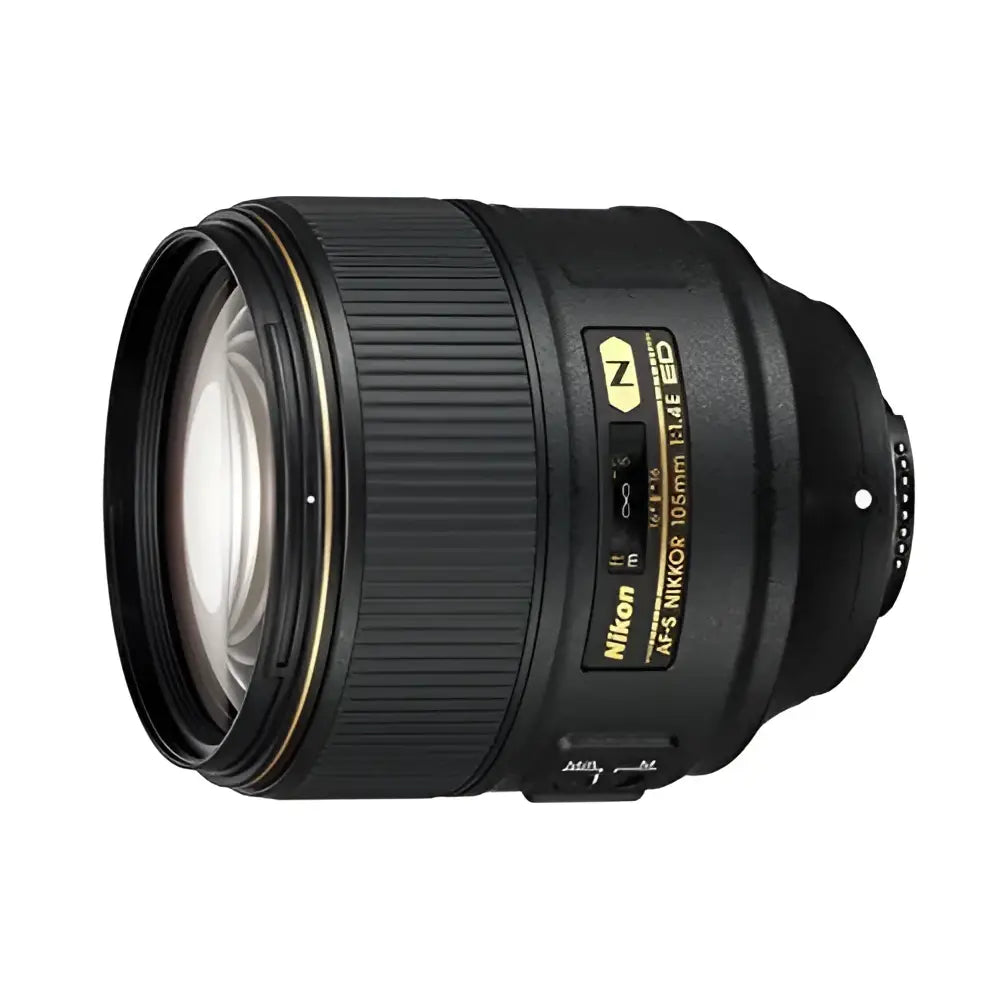

Nikon AF-S 105mm f/1.4E ED Lens

Nikon 105mm 1.4E Overview

105mm compression, f/1.4 depth, and a portrait look built to pull the subject clear of the background. The Nikon AF-S 105mm f1.4E ED Lens is a professional FX-format F-mount prime created for portrait, fashion, studio and available-light photography. Its 105mm focal length provides a comfortable working distance with a compressed medium-telephoto perspective, and the bright f/1.4 maximum aperture creates strong subject separation without requiring an extreme telephoto shooting position.

The Nikon 105mm 1.4E uses 14 optical elements arranged in nine groups, including three Extra-low Dispersion elements for control of chromatic aberration. Nano Crystal Coat reduces internal reflections, and fluorine coating on the front and rear optical surfaces helps repel dust, dirt, water droplets and grease. A rounded nine-blade diaphragm supports gradual transitions from the focus plane into softer foreground and background areas.

Autofocus is driven by Nikon's Silent Wave Motor, backed by Internal Focusing and manual focus control. The E-type electromagnetic diaphragm gives compatible cameras precise electronic aperture operation, including stable exposure control during rapid sequences.

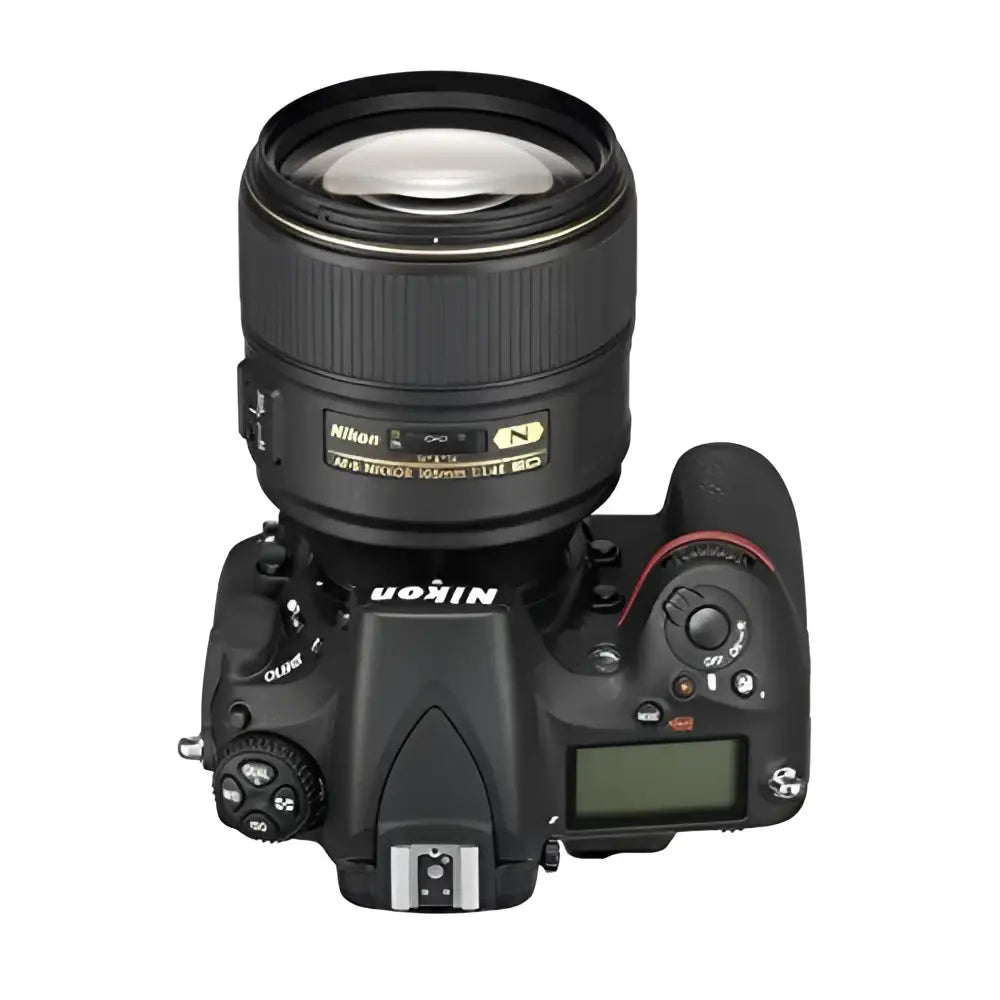

On a Nikon D850 body, the prime retains its native 105mm FX perspective and complements the high-resolution sensor with a portrait-focused focal length capable of recording fine hair, fabric and facial detail.

105mm Portrait Perspective

The 105mm focal length creates a tighter field than a standard prime and produces noticeable compression between a person and the background. Headshots, half-length portraits and tightly framed fashion images can be captured from a comfortable camera-to-subject distance, helping facial proportions remain natural.

Distant lights, foliage, architectural details and studio backdrops appear visually larger behind the person compared with shorter focal lengths. The narrower angle of view also removes more distracting surroundings from the composition, giving the subject greater visual prominence before depth of field is taken into account.

Working distance is equally important. The camera can remain far enough from the person to leave space for movement, posing and lighting placement, a useful characteristic during portrait, beauty and fashion sessions.

A Nikon 50mm f1.8G creates a wider, more neutral perspective and keeps considerably more environmental information inside comparable framing. The 105mm focal length concentrates the composition much more strongly around the person.

Space becomes a practical factor indoors because full-length portraits at 105mm require a greater shooting distance. In a small studio or compact room, headshots and tighter compositions are usually easier to accommodate than full-body framing.

F1.4 Aperture and Low Light

The f/1.4 maximum aperture gives the Nikon 105mm f1.4 one of its defining characteristics. Compared with f/2.8 at the same shutter speed and ISO, f/1.4 admits four times as much light, creating a two-stop exposure advantage in dim conditions.

This extra light can support faster shutter speeds during indoor portraits, evening sessions, ceremonies and available-light assignments. Subject movement remains an important factor in people photography, so greater light intake can help preserve small expressions and gestures without immediately pushing ISO higher.

The large opening also produces very shallow depth at portrait distances. Accurate focus on the eyes can leave surrounding hair, clothing and background detail progressively softer, creating clear separation without removing the visual character of the setting completely.

There is no optical Vibration Reduction inside the lens. Handheld stability depends on camera technique, shutter speed or body-based stabilisation when the optic is mounted on a compatible Nikon Z camera through the appropriate adapter.

A Nikon 24mm f1.4G shares the same maximum aperture but creates an expansive wide-angle perspective, demonstrating how strongly focal length changes the visual effect of an f/1.4 design.

Optical Design and Bokeh

The optical formula contains 14 elements in nine groups, including three ED glass elements designed to control axial chromatic aberration. Colour fringing can become more visible around high-contrast details at large apertures, making optical correction important around hair, jewellery, bright fabrics and backlit edges.

Nano Crystal Coat helps reduce reflections between internal surfaces. Backlit portraits, studio lighting and bright point sources placed near the image area can introduce flare or lower contrast, so reflection control contributes directly to cleaner rendering.

Nikon also designed the 105mm f1.4E ED to reproduce point light sources with strong control of sagittal coma flare. This is particularly relevant during evening portraits and event photography where small lights may form part of the background.

Bokeh comes from the relationship between focal length, aperture, subject distance, background distance and the rounded nine-blade diaphragm. At portrait distances, blur develops progressively beyond the focus plane, creating depth without an abrupt transition between sharp and soft areas.

The Nikon 28mm f1.4E offers another fast F-mount prime with a much broader field, placing greater emphasis on the surroundings and far less on telephoto compression.

Autofocus and Focus Control

The built-in Silent Wave Motor drives autofocus on compatible Nikon cameras. AF-S operation places the focusing motor inside the optic, giving supported bodies smooth and quiet automatic focus without relying on an older camera-driven mechanical system.

Focus accuracy becomes especially important near f/1.4 because the sharp zone can be narrow during close portrait framing. Small movements from the person or camera may shift critical focus away from the eyes, making controlled AF placement an important part of large-aperture photography.

Internal Focusing moves optical groups inside the barrel without changing the exterior length. Physical balance therefore remains consistent from distant subjects down to the minimum focusing distance of 1.0m.

Manual focusing remains available for static portraits, controlled studio setups and video work where direct focus placement is required. The focus ring provides fine adjustment without changing the physical size of the barrel.

The Nikon D780 body provides native F-mount operation with compatible AF-S focusing, electronic aperture control and the intended full-frame 105mm field of view.

E-Type Aperture Control

The E-type electromagnetic diaphragm separates the Nikon AF-S 105mm 1.4E from older F-mount designs that rely on a mechanical aperture linkage. A supported camera controls the diaphragm electronically through the lens.

This system provides precise aperture movement and supports stable exposure during rapid sequences. Repeated portrait, fashion and event frames can maintain consistent diaphragm behaviour as the camera works through a burst.

The aperture range extends from f/1.4 to f/16. Larger openings emphasise shallow depth and light gathering, and smaller settings provide extra depth for three-quarter portraits, fashion poses and compositions where more than one important plane needs to remain sharp.

Full operation depends on camera compatibility because older Nikon bodies do not all support E-type diaphragm control. Supported DSLR and mirrorless combinations retain electronic aperture operation.

The Nikon 70-200mm F4 covers a flexible telephoto range with optical stabilisation, giving it a different role from the fixed 105mm focal length and much brighter f/1.4 opening.

FX and DX Compatibility

The Nikon 105mm f1.4E ED is designed for the FX format, providing its native 105mm medium-telephoto perspective and an approximate 23°10' angle of view on a full-frame Nikon camera.

On DX bodies, the smaller sensor records a narrower portion of the projected image circle. The resulting framing is comparable to approximately 157.5mm on full frame, creating a noticeably tighter telephoto field from the same camera position.

A Nikon D7500 body therefore gives the optic a tighter headshot and stage-photography role, with greater working distance required for equivalent subject framing.

The physical focal length stays at 105mm and the maximum aperture remains f/1.4 on both formats. Sensor dimensions alter the recorded field, not the underlying optical focal length.

FX keeps the classic medium-telephoto portrait perspective, and DX narrows the composition further. This difference is important when available shooting space is limited.

Portrait Fashion and Studio Use

Portraiture sits at the centre of the Nikkor 105mm f1.4E design. The focal length creates a flattering camera-to-subject distance for headshots and half-length compositions, and the narrow field reduces unwanted background elements before any blur is introduced.

The f/1.4 opening gives photographers substantial control over the relationship between the person and the background. Closing the diaphragm increases depth for fashion poses, beauty work and group arrangements where several important areas need greater definition.

Fine fabrics, hair and jewellery can remain highly detailed around the focus plane, making the optic relevant to fashion and commercial portrait photography. The longer distance also creates physical room around the model for lighting, reflectors and styling work.

Studio flash allows smaller aperture settings and lower sensitivities when greater depth is required. Natural-light sessions can use the brighter part of the aperture range to maintain shutter speed and isolate the subject more strongly.

A Nikon 24-120mm zoom covers a much broader range of compositions for assignments requiring frequent framing changes. The 105mm prime remains centred on a specific portrait perspective and f/1.4 depth control.

Available-Light Photography

The Nikon 105mm 1.4E has clear value under natural and existing light because its large aperture can maintain practical shutter speeds in dim surroundings. Window-lit portraits, evening receptions, indoor ceremonies and low-light event details can retain more of the original atmosphere.

Its telephoto perspective also allows candid expressions to be photographed from a greater distance than a standard lens requires. The photographer can remain outside the subject's immediate space and still create tight framing.

Background lights can become a strong visual element at large apertures, with the long focal length increasing their apparent size behind the person. Nano Crystal Coat and optical correction help control unwanted reflections around bright sources.

Stable technique remains important because the lens contains no VR system. The aperture provides exposure flexibility, but the 105mm focal length still makes small camera movements more visible than they would be at shorter focal lengths.

A Nikon 200-500mm zoom serves distant wildlife, sport and action through a reach-focused design, leaving the 105mm f/1.4E firmly positioned around people, portraits and controlled medium-telephoto work.

Build Protection and Handling

The lens measures approximately 94.5mm in diameter and 106mm in length, with an official weight of around 985g. Its near-kilogram construction reflects the large optical elements required to maintain an f/1.4 aperture across a full-frame image circle.

Nikon describes the barrel as sealed and gasketed to resist dust and moisture. Fluorine coating on the front and rear optical surfaces helps repel water droplets, dust, dirt and grease, making routine cleaning easier after location use.

An 82mm front thread accepts standard screw-on filters with a 0.75mm pitch. Neutral-density filtration can be useful when a large aperture is required in bright conditions and exposure needs tighter control.

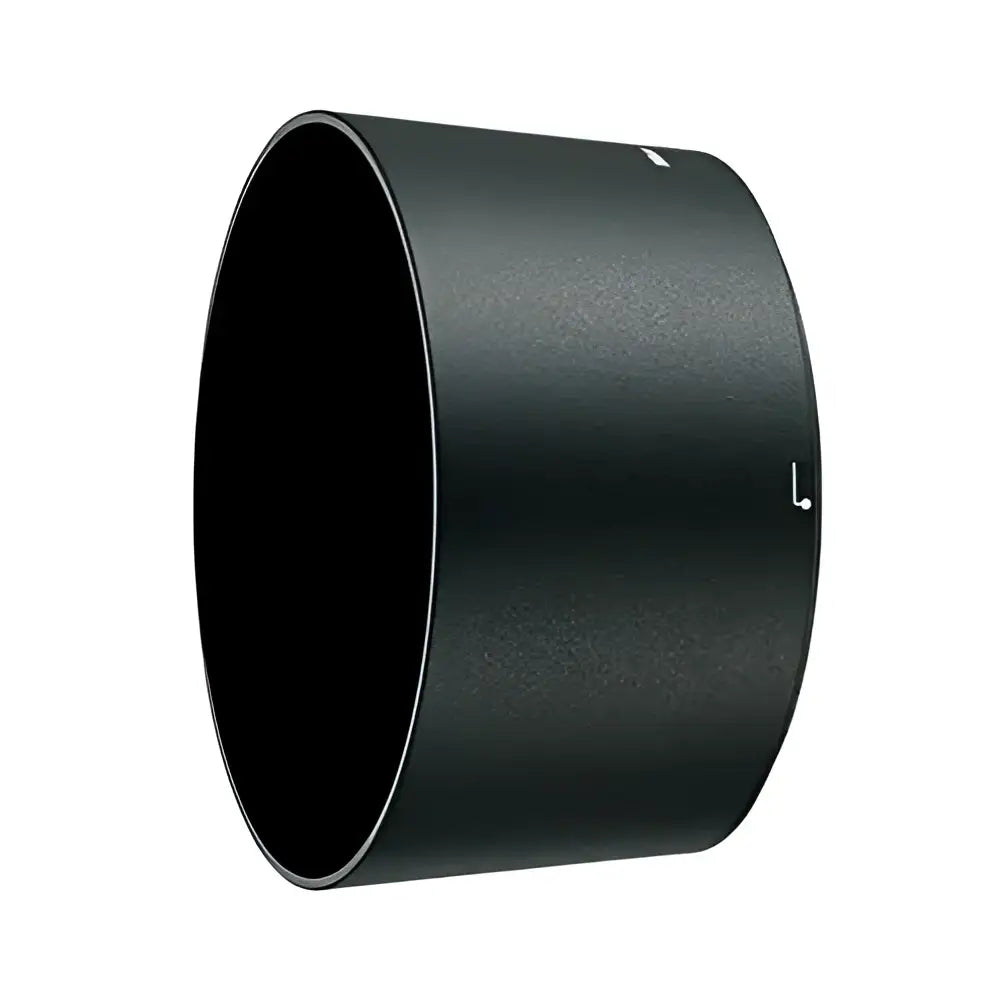

The supplied HB-79 bayonet hood shades the large front element and adds physical protection around the front of the barrel. A CL-1218 case is also included in the standard manufacturer package.

The Z 70-200mm F2.8 provides native Nikon Z operation, zoom flexibility and built-in VR, creating a distinctly different handling profile from this fast F-mount prime.

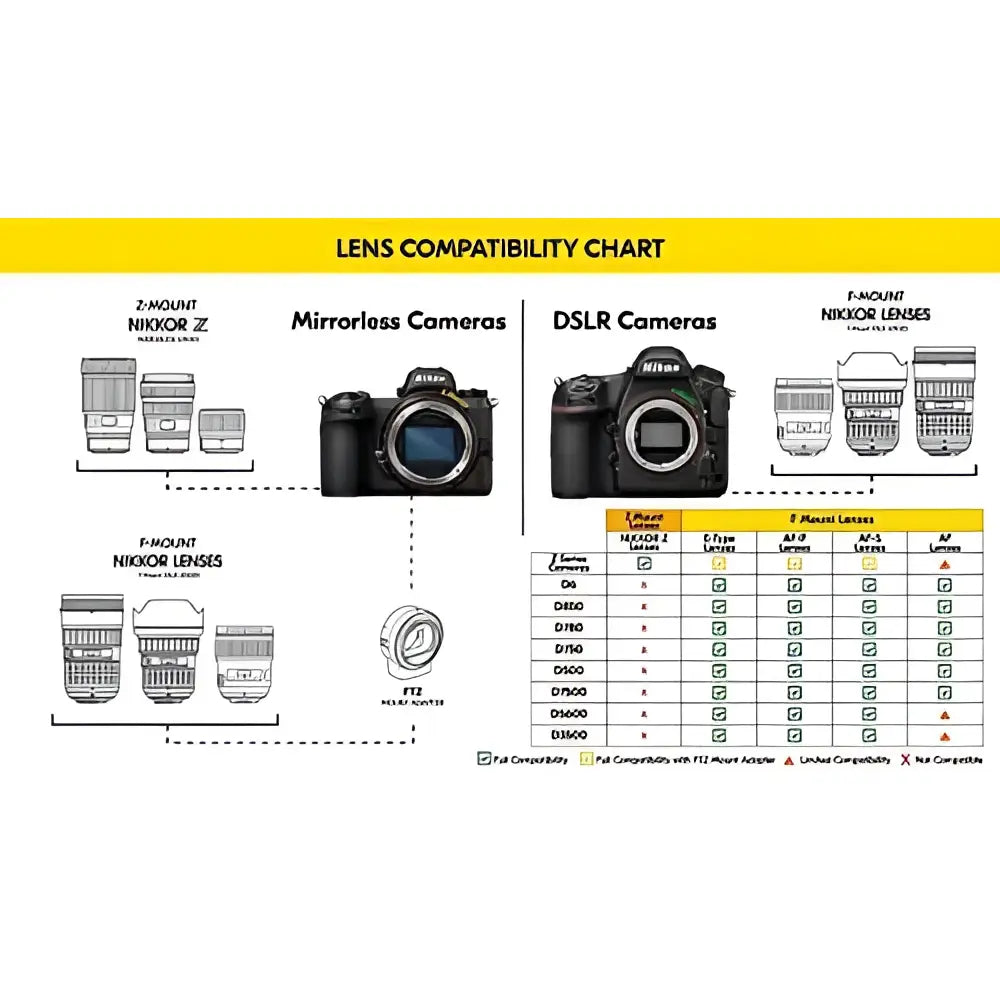

Nikon F and Z Compatibility

The Nikon 105mm f1.4E ED uses the Nikon F bayonet mount and supports compatible FX and DX DSLR cameras. Full function depends on support for the E-type electromagnetic diaphragm, making body compatibility important with older Nikon equipment.

Supported DSLRs maintain AF-S autofocus, distance communication, metering and electronic aperture operation through the native mount.

Nikon Z cameras can use this F-mount lens through the FTZ II adapter, preserving supported electronic functions on compatible mirrorless bodies.

A Nikon Z8 body adds a high-resolution full-frame sensor, modern subject detection and in-body stabilisation to the adapted setup, giving the non-VR prime camera-based correction for handheld movement.

The Nikon Z6 III provides another full-frame platform with sensor stabilisation and modern autofocus technology, retaining the native 105mm field through the correct adapter.

A Nikon Z7 II also maintains full-frame framing and adds body-based stabilisation, creating a high-resolution mirrorless platform for the established F-mount portrait optic.

Close Focus and Macro Difference

The Nikon 105mm 1.4E focuses down to 1.0m from the camera's focal plane and reaches a maximum reproduction ratio of approximately 0.13x. These figures suit headshots, fashion details and normal telephoto subjects but do not place the product in the macro category.

The 105mm focal length can create confusion because Nikon also uses this focal range for dedicated close-up optics. Macro performance depends on reproduction ratio and close-focus capability, not focal length alone.

The Z MC 105mm Macro reaches 1:1 reproduction for small subjects and serves a fundamentally different purpose despite sharing the same nominal focal length.

The Nikon 105mm f1.4E ED instead concentrates on telephoto compression, portrait distance and shallow depth. Its one-metre minimum focus also provides practical room around a person during tightly framed portrait work.

This distinction keeps the product intent clear. The f/1.4E is a fast portrait prime built for people and medium-telephoto photography, not a specialist close-up optic.

Practical Limitations

The large aperture and full-frame optical construction produce a weight of approximately 985g. Extended handheld sessions can therefore become tiring, especially when the lens is paired with a substantial professional DSLR.

There is no optical Vibration Reduction system. The bright aperture helps maintain faster shutter speeds under limited light, but very slow handheld exposures still demand steady technique or camera-based stabilisation on a compatible mirrorless setup.

The 1.0m minimum focus distance and 0.13x reproduction ratio limit small-subject photography. Detailed macro work falls outside the design purpose of this model.

Indoor space can also become restrictive. Full-length compositions require considerable camera-to-subject distance, with the tighter DX field increasing that requirement further.

Depth at f/1.4 can be extremely narrow during close portraits. Focus placement, subject movement and camera movement therefore have a direct effect on the sharpest area of the image.

E-type aperture control creates another compatibility point for older Nikon equipment because full electronic diaphragm operation depends on a supported body.

The Nikon AF-S 105mm f1.4E ED Lens remains clearly positioned around 105mm portrait compression, f/1.4 light gathering and controlled background rendering, separating its commercial purpose from macro optics, general-purpose zooms and longer action lenses.

FAQS

Is the Nikon 105mm 1.4E a full-frame lens?

Yes. The Nikon 105mm 1.4E is an FX-format F-mount prime designed to cover a full-frame Nikon sensor, where it provides its native 105mm medium-telephoto perspective.

What is the Nikon 105mm f1.4 designed for?

The main applications are portrait, fashion, studio and available-light photography. Its 105mm perspective provides telephoto compression, and the f/1.4 aperture creates substantial control over depth and subject separation.

Is the Nikon 105mm f1.4E ED a macro lens?

No. Minimum focus is 1.0m and maximum reproduction is approximately 0.13x, so the optical design is intended for portrait and normal telephoto distances instead of life-size close-up work.

What aperture range does it have?

The diaphragm opens to f/1.4 and closes to f/16. This gives broad control over light intake and depth, from strongly isolated portraits to compositions requiring greater focus depth.

Does the Nikon 105mm 1.4E have VR?

No. There is no optical Vibration Reduction system inside the lens, so handheld stability relies on technique or camera-based stabilisation on a compatible adapted mirrorless body.

How much does the Nikon 105mm f1.4E weigh?

Nikon specifies an approximate weight of 985g. Its dimensions are roughly 94.5mm in maximum diameter and 106mm in length from the camera mount flange.

What filter size does it use?

The front thread accepts 82mm screw-on filters with a 0.75mm pitch. This accommodates commonly used professional neutral-density and protective filters.

How close can the lens focus?

Minimum focusing distance is approximately 1.0m or 3.3ft from the camera's focal plane. Maximum reproduction at that distance is approximately 0.13x.

What autofocus system does it use?

The lens uses Nikon's AF-S Silent Wave Motor autofocus system. Internal Focusing keeps the external barrel length unchanged as focus distance moves.

Does it support manual focus?

Yes. Manual focusing is supported for precise adjustment during portraits, studio sessions and controlled video work.

What does E mean in Nikon 105mm 1.4E?

The E designation identifies Nikon's electromagnetic diaphragm mechanism. A compatible camera controls aperture electronically for precise diaphragm operation.

Does it work on Nikon DX cameras?

Yes, on compatible DX bodies that support E-type lenses. The recorded framing is comparable to approximately 157.5mm on full frame, producing a tighter telephoto perspective.

Can it be used on Nikon Z cameras?

Yes. A compatible FTZ-series adapter connects the F-mount lens to supported Nikon Z bodies and retains compatible electronic functions.

Does it have fluorine coating?

Yes. Nikon applies fluorine coating to the front and rear optical elements to help repel water droplets, dust, grease and dirt and make cleaning easier.

Is the Nikon 105mm f1.4 weather resistant?

Nikon describes the construction as sealed and gasketed to resist dust and moisture. Normal protection remains appropriate during severe rain, heavy spray and demanding environmental exposure.

How many diaphragm blades does it have?

The lens uses nine rounded diaphragm blades. Their shape supports smooth highlight rendering and gradual blur transitions around large aperture settings.

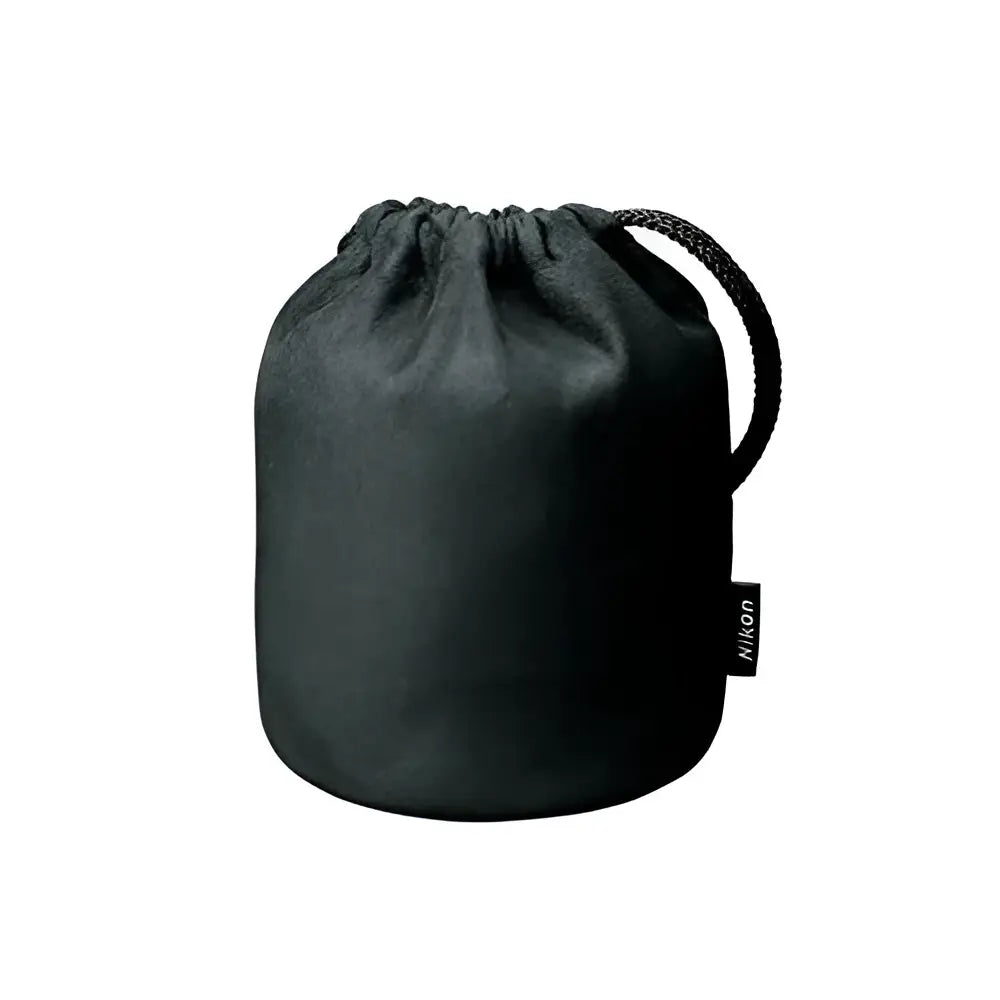

What comes in the standard package?

The standard Nikon package contains the lens, LC-82 front cap, LF-4 rear cap, HB-79 bayonet hood, CL-1218 lens case and product documentation.

Please check the manufacturers website for exact box contents.
