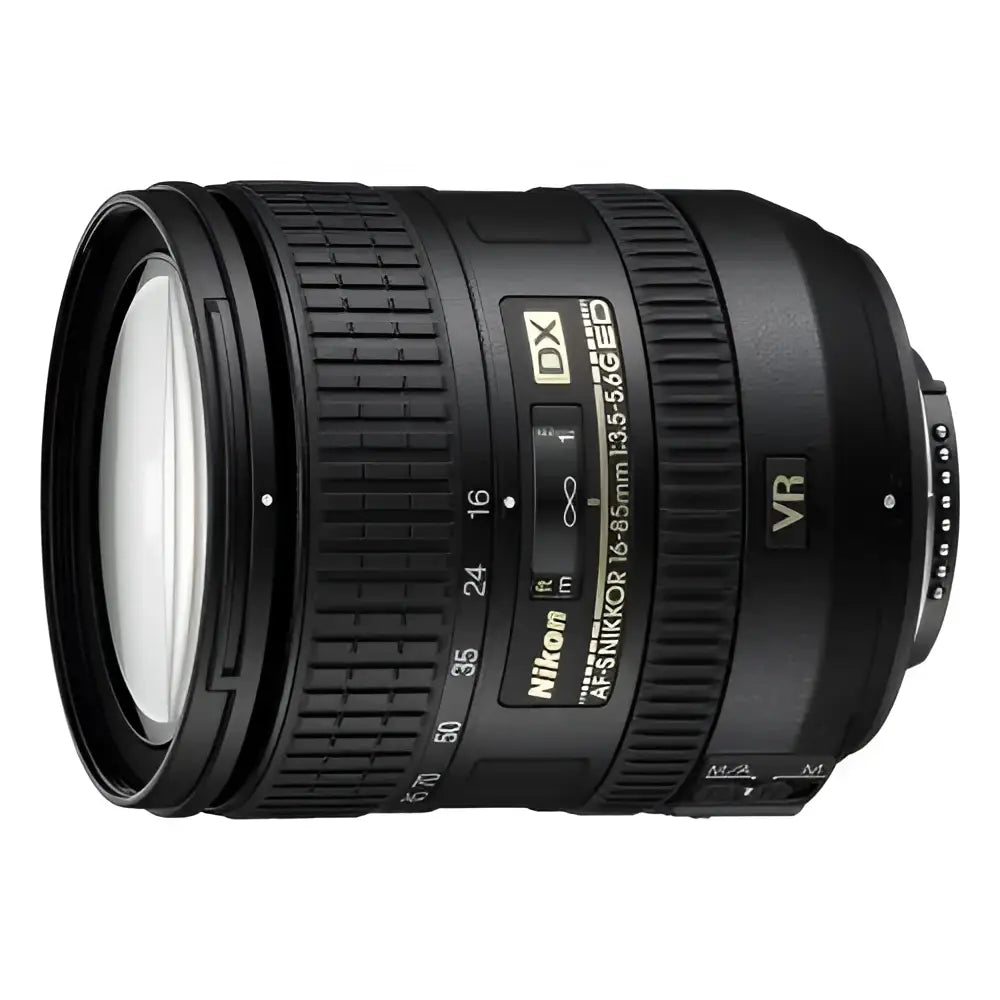

Nikon AF-S DX 16-85mm f/3.5-5.6G ED VR (Retail Packing)

Nikon AF-S DX 16-85mm Overview

The Nikon AF-S DX 16-85mm is a Nikon F-mount DX-format zoom built for photographers who want a broader working range and greater optical flexibility than a basic DX kit zoom without moving to a much larger superzoom. Its 16-85mm focal range produces an angle of view equivalent to approximately 24-127.5mm on a 35mm-format camera, covering genuinely wide compositions at one end and useful short-telephoto framing at the other.

Designed specifically for Nikon DX-format DSLR cameras, the lens combines a 5.3× zoom range with Nikon Vibration Reduction, Silent Wave Motor autofocus, Internal Focusing, ED glass and aspherical lens elements. This combination suits travel, street photography, architecture, family photography, portraits and general everyday DSLR use, especially when one versatile zoom needs to remain fitted for much of the day.

The 16mm starting point is one of the lens's most useful characteristics. On a Nikon DX camera it produces an angle of view similar to approximately 24mm on 35mm format, providing noticeably more space in the frame than an 18mm DX zoom, which begins around 27mm equivalent. The extra width can make a noticeable difference indoors, around architecture, in narrow streets and when photographing large outdoor scenes from restricted working positions.

At the opposite end, 85mm gives approximately a 127.5mm-equivalent angle of view. This moves comfortably into short-telephoto territory for portraits, event details and tighter compositions, giving the Nikon AF-S DX 16-85mm broader working coverage than many standard kit lenses without pushing its dimensions towards larger travel-superzoom designs.

The variable f/3.5-5.6 maximum aperture keeps the construction relatively manageable. At 16mm the lens opens to f/3.5, with the maximum aperture gradually reducing until it reaches f/5.6 at 85mm. Nikon optical VR supports handheld shooting as available light falls, and a faster Nikon AF-S DX 35mm f/1.8G prime lens can complement the zoom when a larger aperture is needed for darker interiors or stronger background separation.

16-85mm Zoom Range on Nikon DX

The 16-85mm range gives the lens a distinctive position within Nikon's DX DSLR system. Starting at 16mm provides significantly more room for wide compositions than a typical 18mm kit zoom, yet the lens continues through the standard focal-length region and reaches 85mm for short-telephoto framing. This balance works well when broad everyday coverage matters more than extreme telephoto reach.

At 16mm, the approximately 24mm-equivalent view works well for architecture, interiors, travel scenes, environmental portraits and large subjects viewed from limited distances. The difference between 16mm and 18mm can be more significant in practice than the numbers initially suggest, particularly in older buildings, confined interiors and narrow city streets.

Around the middle of the zoom range, focal lengths near 35mm to 50mm provide natural framing for documentary work, groups, family photography, street scenes and environmental portraits. These focal lengths can remain useful for a large portion of normal photography because small changes to the zoom ring quickly alter the composition without requiring a lens change.

Moving towards 70mm and 85mm tightens the field of view for portraits, details, events and isolated subjects. At 85mm, the lens produces an angle of view similar to approximately 127.5mm on 35mm format, providing a comfortable working distance for informal portraits and tighter compositions. The maximum aperture has reduced to f/5.6 at this point, so the longer focal length contributes more to subject separation than aperture size alone.

Photographers who prioritise substantially greater telephoto coverage from one DX lens may consider the Nikon AF-S DX 18-140mm f/3.5-5.6G ED VR. The Nikon AF-S DX 16-85mm takes a different approach, beginning wider at 16mm and concentrating its working range around wide-angle, standard and short-telephoto photography.

Optical Design and Image Quality

The optical construction contains 17 elements arranged in 11 groups, including two Extra-Low Dispersion elements and three aspherical elements. These specialised optical elements help control chromatic aberration, geometric distortion and other optical errors across the 5.3× zoom range, particularly at focal lengths where wide-angle correction becomes more demanding.

ED glass reduces colour fringing caused when different wavelengths of light reach focus at slightly different positions. This becomes especially relevant around high-contrast edges, fine branches against bright skies, architectural details and other subjects where coloured outlines can become visible.

The three aspherical elements help control spherical aberration, distortion and related optical errors without requiring a much larger optical construction. Their role is particularly important around the 16mm end, where the lens needs to provide an approximately 24mm-equivalent angle of view on Nikon DX cameras while keeping fine detail and geometry under control.

Nikon Super Integrated Coating helps reduce internal reflections and supports stronger contrast and colour reproduction when bright light enters or approaches the frame. Using the supplied HB-39 bayonet hood can provide further protection from unwanted side light that may reduce image contrast.

A seven-blade rounded diaphragm contributes to smoother rendering in defocused areas. The variable f/3.5-5.6 maximum aperture is not designed to create the same shallow depth of field as a fast prime, but longer focal lengths and closer subject distances can still produce useful separation for portraits and detail photography.

Autofocus and Manual Focus Control

The Nikon AF-S DX 16-85mm uses Nikon's built-in Silent Wave Motor to drive autofocus. Because the focusing motor sits inside the lens, autofocus does not depend on a mechanical screw-drive motor inside the camera body. This broadens autofocus compatibility across Nikon DX DSLR bodies that support AF-S lenses.

Compatible Nikon cameras communicate electronically with the lens for focus, aperture and distance information. The AF-S design provides responsive focusing for everyday photography and keeps operating noise relatively low, which is useful for family photography, events, street work and quieter environments.

Internal Focusing means that focus adjustment is carried out by optical groups inside the lens. The main barrel does not extend simply because focusing distance changes, helping maintain more consistent handling when moving between close subjects and distant scenes.

Manual focus is supported through M/A operation. Autofocus can establish the initial focus position, after which a manual correction can be made when more precise placement is required. This is useful for detailed subjects, static compositions and situations where autofocus has locked close to the intended point.

Minimum focusing distance is approximately 0.38m throughout the complete zoom range. Keeping the same minimum distance from 16mm through 85mm makes close-focus behaviour predictable and allows tighter framing at the long end without introducing a different focus limit.

Maximum reproduction ratio is approximately 0.21×, giving useful capability for food, flowers, objects and detailed photography. It is not intended as a true macro lens, so work requiring much greater magnification needs a dedicated macro optic from the wider camera lens range at Norwich Cameras.

Vibration Reduction for Handheld Photography

Nikon optical Vibration Reduction is built directly into the lens and operates through a lens-shift mechanism. The stabilisation system is rated at approximately 3.5 stops under CIPA testing conditions, helping reduce visible blur caused by camera movement during handheld photography.

The practical benefit is the ability to work at slower shutter speeds than would normally be comfortable with a non-stabilised lens. This can help maintain lower ISO settings for stationary subjects in interiors, shaded streets, evening scenes and other situations where available light begins to fall.

VR becomes increasingly useful towards 85mm because small camera movements become more visible as focal length increases. Stabilisation reduces movement generated by the photographer, but it cannot freeze a moving person, animal or vehicle. Subject movement still requires a shutter speed suitable for the speed of the subject.

The lens includes Normal and Active VR modes. Normal mode is intended for conventional handheld photography, with Active mode designed for situations involving stronger movement or vibration from the photographer's position.

When the camera is mounted securely on a stable support, VR can be disabled when no camera movement requires correction.

Performance And Real-World Capabilities

The main practical strength of the Nikon AF-S DX 16-85mm is the combination of a genuinely wide DX starting point and enough short-telephoto reach to cover a large part of everyday photography. A photographer can move from a wide architectural composition to a portrait, family image or detail without replacing the lens.

At 16mm, the approximately 24mm-equivalent field of view provides considerably more framing space than a standard 18mm DX kit zoom. This becomes valuable when working close to buildings, inside smaller rooms, at events or in crowded travel locations where changing physical position may not be practical.

The middle focal lengths offer a natural perspective for general photography. Around 24mm to 50mm, the lens can cover groups, environmental portraits, street scenes, documentary images and everyday subjects without strong wide-angle exaggeration or pronounced telephoto compression.

The longer part of the zoom range provides flexibility for isolating smaller details and photographing people from a more comfortable distance. At 85mm, perspective becomes useful for informal portrait work and tighter compositions, giving the lens greater flexibility than standard DX zooms that end around 55mm.

At approximately 485g, the lens remains manageable enough for travel and prolonged handheld use. Pairing it with the Nikon D7500 DSLR body creates a native DX F-mount setup with access to optical viewfinder shooting, Nikon AF-S autofocus and built-in lens stabilisation.

The variable aperture needs to be considered in lower light. Maximum aperture starts at f/3.5 at 16mm and becomes f/5.6 at 85mm. VR can compensate for camera movement when photographing static subjects, though it cannot replace a brighter aperture when the subject itself is moving.

For low-light photography where zoom flexibility is less important, the compact Nikon AF-S 50mm f/1.8G provides a considerably larger maximum aperture and can complement the 16-85mm without duplicating its main role.

Advanced Optical Features and Lens Technologies

Two ED Glass Elements

Two Extra-Low Dispersion elements are included in the optical system to control chromatic aberration and reduce visible colour fringing. This helps maintain cleaner edges and more accurate fine detail around high-contrast subjects throughout the zoom range.

Three Aspherical Elements

Three aspherical elements help control distortion, spherical aberration and other optical errors across the 5.3× zoom range. Their role becomes particularly important towards the wide end, where correction becomes more demanding as the field of view expands.

Nikon Super Integrated Coating

Nikon Super Integrated Coating helps reduce unwanted internal reflections and maintain contrast when bright light reaches the optical system. This supports cleaner colour and stronger detail in backlit scenes and difficult lighting.

Silent Wave Motor

The built-in Silent Wave Motor provides lens-driven autofocus without requiring a body-based screw-drive motor. This supports autofocus operation across compatible Nikon DSLR bodies and keeps focusing behaviour relatively quiet.

Internal Focusing

Internal Focusing moves optical groups inside the lens during focus adjustment instead of changing the external barrel length for focusing. This helps maintain consistent balance as subject distance changes.

Distance Information Transfer

The lens can communicate subject-distance information to compatible Nikon cameras. Supported metering and exposure systems can use this data during exposure calculations.

Rounded Seven-Blade Diaphragm

The seven-blade rounded diaphragm helps maintain a more rounded aperture opening at suitable settings, contributing to smoother rendering in out-of-focus areas.

67mm Filter Thread

The front of the lens accepts 67mm screw-in filters, allowing direct use of compatible polarisers, neutral-density filters and protective filters without requiring a step ring. The common diameter can also make it easier to share filters with other lenses using the same size.

Build, Handling and Travel Practicality

The lens measures approximately 72mm in maximum diameter and 85mm in length from the camera mount flange, with an approximate weight of 485g. This places it between lightweight entry-level kit zooms and considerably larger professional optics, giving it enough physical presence for balanced DSLR handling without placing unnecessary weight on a travel setup.

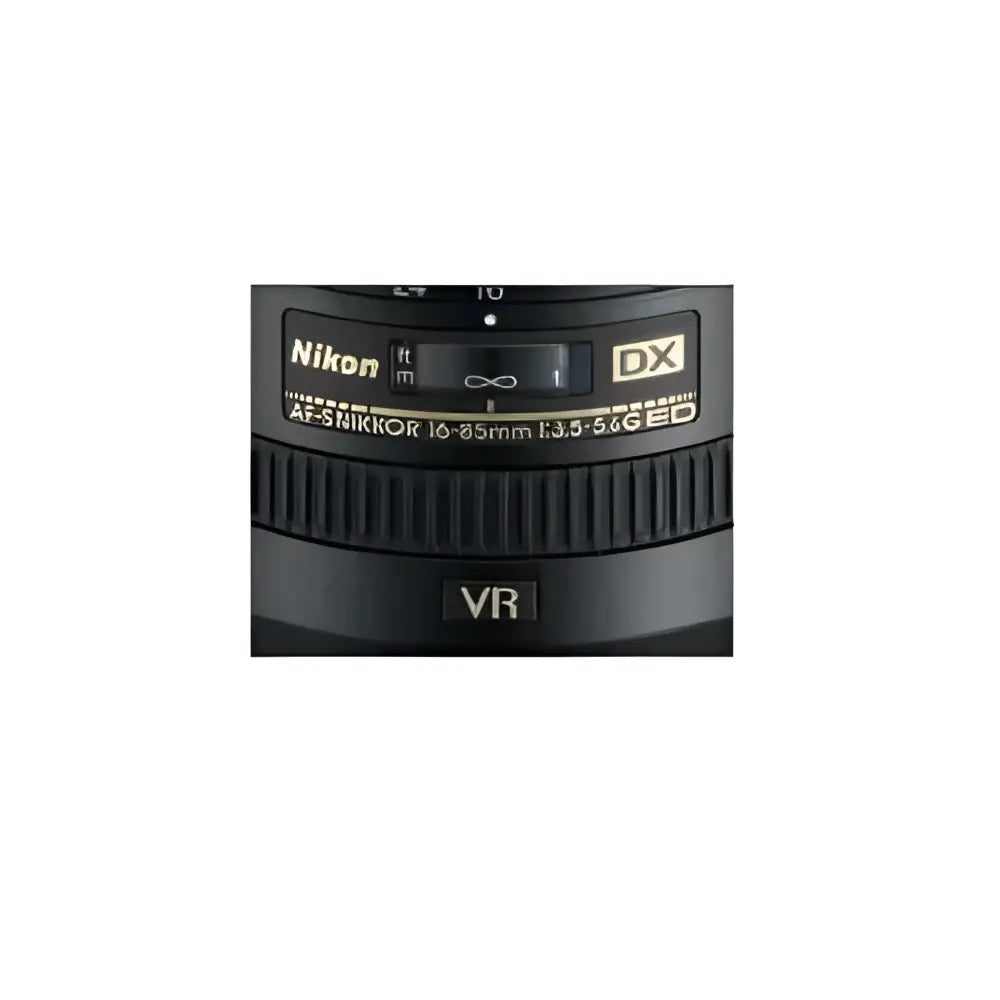

The zoom ring provides marked focal positions at 16, 24, 35, 50, 70 and 85mm. These reference points make it easy to judge the current framing position and quickly move between wide, standard and short-telephoto compositions.

As a G-type Nikon lens, there is no mechanical aperture ring. Aperture is controlled electronically from a compatible Nikon camera body, consistent with Nikon F-mount DSLR operation.

The 67mm filter size is practical for outdoor and travel photography because compatible polarising and neutral-density filters can be mounted directly. Photographers who already use other 67mm lenses may also be able to share accessories across their kit.

Retail packing includes the lens with the standard accessories for this model, including the LC-67 front cap, rear lens cap, HB-39 bayonet hood and CL-1015 soft lens case.

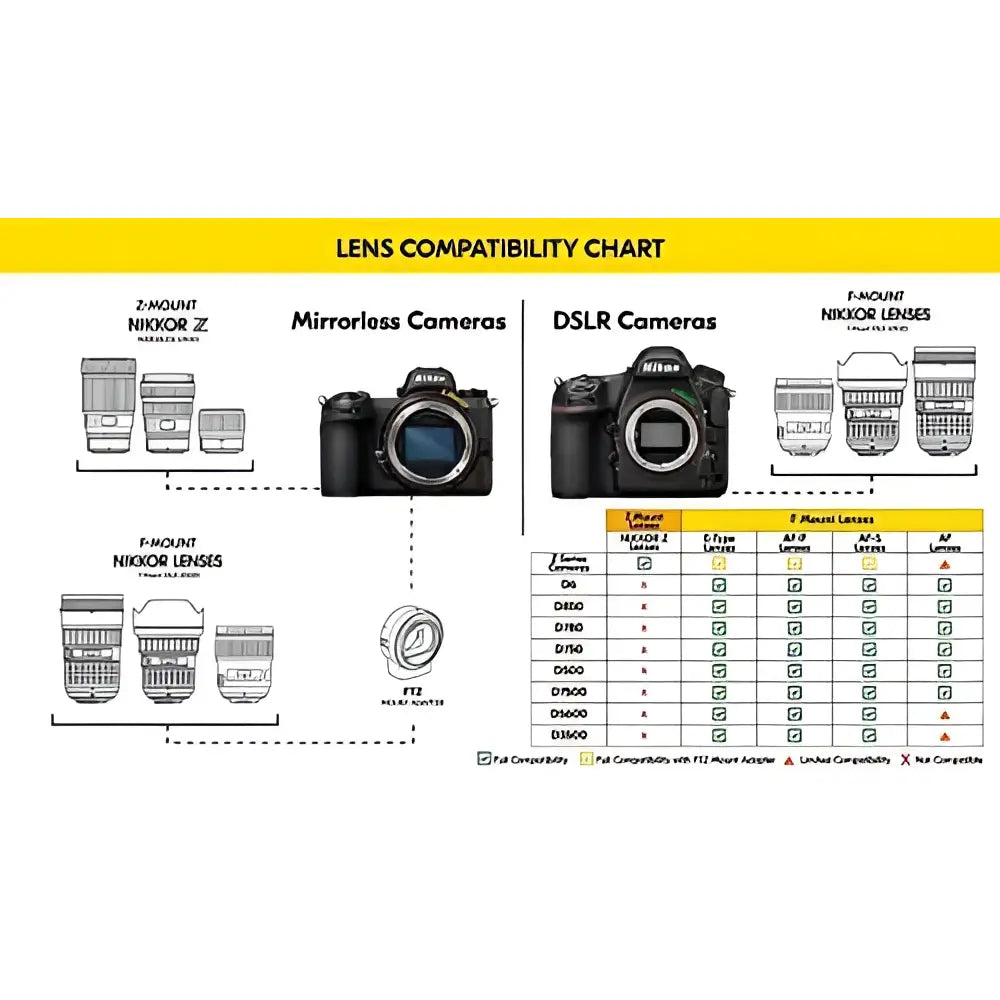

Nikon DX DSLR Compatibility

The Nikon AF-S DX 16-85mm is designed primarily for Nikon DX-format F-mount digital SLR cameras. On a DX sensor, its 16-85mm focal range provides an angle of view equivalent to approximately 24-127.5mm on 35mm format, giving the lens useful coverage from wide-angle to short telephoto.

Its AF-S construction places the focusing motor inside the lens, allowing compatible Nikon DX DSLR cameras to use autofocus without relying on a body-mounted mechanical focus motor. Photographers building around this lens can view the broader DSLR camera range available at Norwich Cameras for compatible F-mount body options.

The lens can also mount on compatible Nikon FX F-mount cameras, but its optical image circle is designed for the smaller DX sensor format. Using the DX image area is therefore the appropriate configuration when fitted to a compatible FX DSLR.

Nikon Z cameras require a compatible FTZ or FTZ II mount adapter because the lens uses Nikon F mount. Supported AF-S Type G lenses retain compatible electronic operation through the adapter, with a DX lens using the DX image area on compatible Nikon Z cameras.

Ideal Use Cases For This Lens

Travel Photography

The 16-85mm range covers city scenes, interiors, streets, people, food, details and tighter compositions from one manageable zoom. Its approximately 24mm-equivalent wide end can be especially useful in historic streets, buildings and indoor environments where physical working space is restricted. The 485g weight and built-in VR also help keep the lens practical for long days spent shooting handheld.

Architecture and Interiors

The 16mm focal length is one of the main advantages over a conventional 18mm DX kit zoom. Its approximately 24mm-equivalent field of view provides noticeably more framing room for buildings, rooms and structural compositions, helping when large subjects need to fit into the frame from limited working distances.

Perspective still depends heavily on camera position. Keeping the camera level remains important when architectural verticals need to stay controlled, especially around the wide end of the zoom range.

Street and Documentary Photography

The broad zoom range allows framing to respond quickly to changing subject distances without repeated lens changes. Wider focal lengths can include more environment around a person or scene, with the longer end providing tighter framing from farther away.

Family and Everyday Photography

A single Nikon AF-S DX 16-85mm can cover group photographs, children, celebrations, pets, outings and everyday details. Optical VR supports stationary subjects as light levels fall, with Silent Wave Motor autofocus providing responsive focusing on compatible Nikon DSLR bodies.

Portrait Photography

Focal lengths around 70mm to 85mm provide a comfortable shooting distance and short-telephoto perspective on Nikon DX. The f/5.6 maximum aperture at the long end provides less depth-of-field control than a fast portrait prime, but useful separation can still be created through focal length, subject distance and background placement.

Outdoor Scenic Photography

The wide end provides a useful field of view for mountains, coastlines, woodland scenes and broad outdoor subjects. Optical VR supports handheld work around sunrise, sunset and shaded environments where shutter speeds begin to fall.

General DSLR Photography

The focal range is broad enough for the lens to remain fitted during a large part of normal photography. For a complete DSLR setup with considerably more telephoto coverage from the supplied lens, the Nikon D7500 kit with 18-140mm lens takes a longer-range approach from a slightly narrower 18mm starting point.

Limitations and Purchase Considerations

The variable f/3.5-5.6 maximum aperture is the main limitation to consider. As focal length increases, the maximum aperture becomes smaller, so dim environments may require a higher ISO setting or slower shutter speed. VR can reduce blur caused by camera movement, but moving subjects still require an appropriate shutter speed.

The 85mm maximum focal length provides useful short-telephoto coverage without reaching the distances offered by dedicated telephoto lenses. Photographers regularly working with distant wildlife, sport or aircraft may need considerably greater reach, where a lens like the Nikon AF-S 200-500mm f/5.6E ED VR occupies a very different telephoto role.

Maximum reproduction ratio is approximately 0.21×, making the lens suitable for details and moderate close-up work but not true macro photography. Subjects requiring high magnification need an optic designed specifically for close-range reproduction.

The lens is designed for Nikon DX cameras and does not provide full FX-format image-circle coverage. Nikon FX DSLR users can operate it in the DX image area, but its strongest role remains native use on DX-format Nikon bodies.

Its design comes from Nikon's DSLR generation, so it does not include controls developed specifically for newer Z-mount mirrorless lenses. Its strengths centre on native Nikon F-mount compatibility, a useful 16-85mm DX range, built-in VR, AF-S focusing and established Nikon DSLR support.

FAQs

What cameras is the Nikon AF-S DX 16-85mm designed for?

The lens is designed primarily for Nikon DX-format F-mount DSLR cameras. Its integrated AF-S Silent Wave Motor provides autofocus on compatible Nikon DX DSLR bodies without requiring a mechanical focus motor inside the camera.

What is the equivalent focal range of the Nikon AF-S DX 16-85mm?

On a Nikon DX camera, the 16-85mm focal range provides an angle of view approximately equivalent to 24-127.5mm on 35mm format.

Why is the 16mm starting point useful?

On DX, 16mm provides an angle of view close to approximately 24mm on 35mm format. A conventional 18mm DX zoom begins around 27mm equivalent, so the 16mm position captures a noticeably broader field of view.

Does the Nikon AF-S DX 16-85mm have Vibration Reduction?

Yes. The lens contains Nikon optical Vibration Reduction rated at approximately 3.5 stops under CIPA testing. Normal and Active VR modes are available.

Does the Nikon AF-S DX 16-85mm have autofocus?

Yes. It uses Nikon's built-in Silent Wave Motor for autofocus and does not depend on a body-mounted screw-drive autofocus motor.

Can focus be adjusted manually?

Yes. Manual focusing is supported, including direct focus correction when greater precision is required.

How close can the Nikon AF-S DX 16-85mm focus?

Minimum focusing distance is approximately 0.38m throughout the entire zoom range.

Is the Nikon AF-S DX 16-85mm a macro lens?

No. Maximum reproduction ratio is approximately 0.21×. This provides useful capability for smaller details but does not provide true 1:1 macro reproduction.

What filter size does the Nikon AF-S DX 16-85mm use?

The lens uses a 67mm filter thread with a 0.75mm pitch.

How much does the Nikon AF-S DX 16-85mm weigh?

The lens weighs approximately 485g.

Does the lens have a constant aperture?

No. Maximum aperture changes from f/3.5 at 16mm to f/5.6 at 85mm.

Can the Nikon AF-S DX 16-85mm be used on an FX DSLR?

It can mount on compatible Nikon F-mount FX bodies, but its image circle is designed for DX format. DX crop operation is therefore the appropriate configuration.

Can the Nikon AF-S DX 16-85mm be used on Nikon Z cameras?

Yes. Compatible Nikon Z cameras can use supported AF-S F-mount lenses through an FTZ or FTZ II adapter. As a DX lens, it uses the DX image area on compatible Nikon Z bodies.

Is the Nikon AF-S DX 16-85mm suitable for travel photography?

Its approximately 24-127.5mm-equivalent coverage, 485g weight, optical VR and 16mm wide starting point provide broad framing flexibility for travel with a Nikon DX DSLR.

What comes with the retail-packed Nikon AF-S DX 16-85mm?

The standard retail package contains the lens, LC-67 front cap, rear lens cap, HB-39 bayonet hood and CL-1015 soft lens case.
