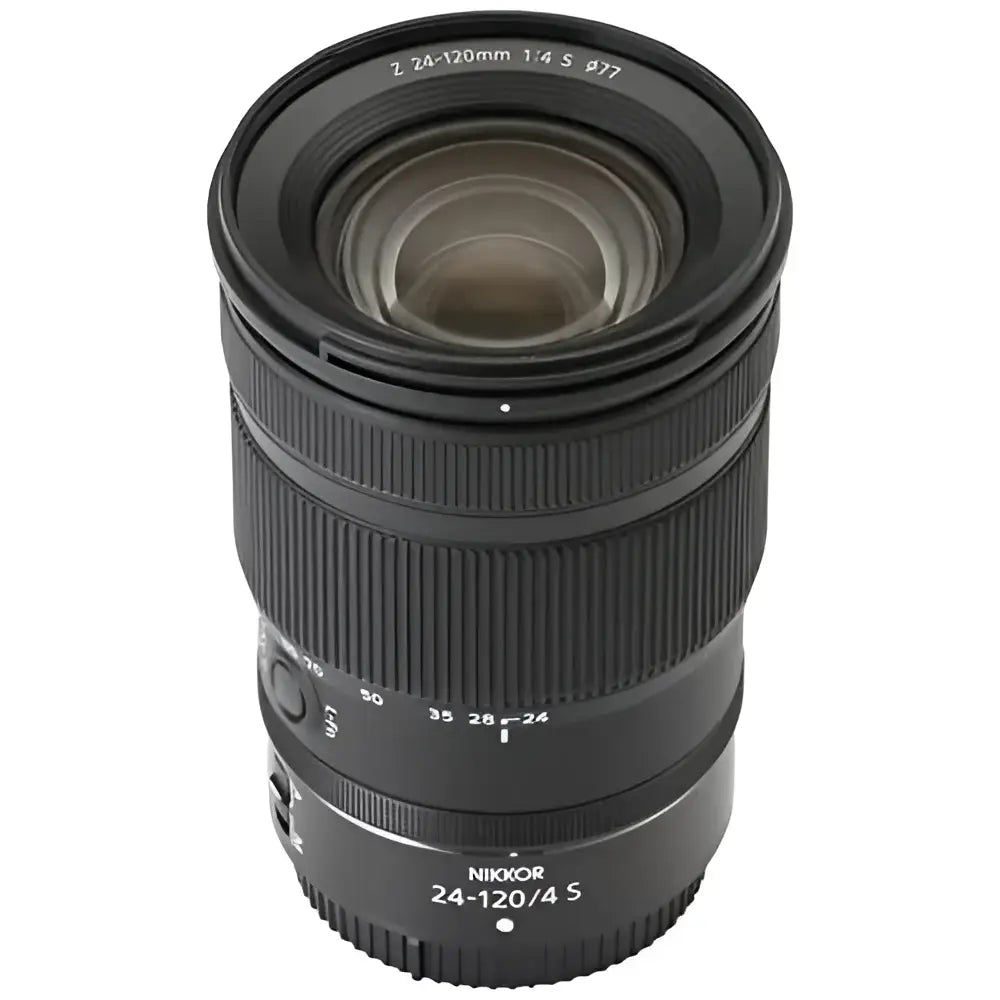

Nikon Z 24-120mm f/4 S Lens (Retail Box)

Nikon 24 120 Overview

The Nikon 24 120 is a full-frame Nikon Z-mount S-Line zoom built around a broad 24-120mm focal range and a constant f/4 maximum aperture. It begins at a genuinely useful 24mm wide-angle position, moves through familiar standard focal lengths and reaches 120mm for tighter portraits, details and short-telephoto framing. That 5x zoom range gives photographers considerably more reach than a conventional 24-70mm standard zoom without moving into the dimensions of a long telephoto lens.

Its constant f/4 aperture remains available throughout the complete zoom range. Exposure therefore stays predictable when moving from 24mm to 120mm, which is valuable for manual-exposure photography and video recording where an aperture change during zooming could alter brightness. The f/4 design also helps keep the lens to approximately 630g, giving it a practical balance between focal coverage, optical quality and everyday handling.

As an S-Line optic, the NIKKOR Z 24-120mm f/4 S uses a more advanced optical construction than a basic general-purpose zoom. Its 16-element, 13-group design includes three ED elements, one aspherical ED element and three aspherical elements, backed by Nano Crystal Coat, ARNEO Coat and a fluorine-treated front element. These technologies are intended to control colour fringing, distortion, flare and loss of contrast throughout the focal range.

The lens pairs naturally with full-frame Nikon Z bodies across several performance levels. A compact setup around the Nikon Z5 II full-frame body keeps the emphasis on general stills and travel work, whereas a higher-resolution Nikon Z8 camera body places greater demands on optical detail and gives the 24-120mm range a strong role in demanding stills and hybrid production.

24-120mm Focal Range and 5x Zoom Flexibility

The 24mm position provides a broad full-frame field of view for architecture, interiors, travel photography, environmental portraits and large outdoor scenes. It is wide enough to establish the surroundings around a subject without entering the more exaggerated perspective associated with very short ultra-wide focal lengths. For photographers who frequently work inside restricted spaces, the 24mm end can cover a large portion of normal wide-angle work without requiring a separate optic.

Moving through 35mm, 50mm and 70mm brings the lens into familiar everyday focal lengths. These positions work well for documentary photography, street scenes, family photography, events and natural-perspective portraits. The ability to move through these viewpoints without changing lenses is one of the practical strengths of the Nikon Z 24-120, especially during assignments where subjects and working distances change quickly.

The 85mm to 120mm section extends the lens beyond the coverage of a typical standard zoom. Portraits can be photographed from a more comfortable distance, visual details can be isolated more easily and compositions can be tightened without physically moving closer. At 120mm, perspective compression becomes more noticeable, giving photographers another creative option without carrying a separate short telephoto.

Photographers whose work rarely extends beyond 70mm may prefer the smaller Nikon Z 24-70mm f/4 S standard zoom. The 24-120mm takes a broader approach, adding 50mm of extra reach at the long end in exchange for a larger body and slightly greater weight.

Constant f/4 Aperture Throughout the Zoom Range

The constant f/4 maximum aperture is one of the defining features of the nikon 24-120 f4 design. A variable-aperture zoom becomes progressively darker as focal length increases, forcing exposure settings to change. Here, f/4 remains available at 24mm, 50mm, 85mm and 120mm, giving the lens consistent exposure behaviour from wide-angle to short telephoto.

This becomes particularly useful during video recording. A focal-length change does not force the maximum aperture to become smaller, reducing the risk of an exposure shift during a zoom move. The same benefit applies to still photographers working with manual exposure, studio lighting or controlled event settings where consistency is valuable.

The f/4 aperture also contributes to the lens's size and weight. Moving to an f/2.8 standard zoom increases light-gathering capability and depth-of-field control, but usually brings greater physical size and weight. The 24-120mm prioritises extended focal coverage and portability without moving to a variable maximum aperture.

For low-light work where a larger aperture is more important than zoom flexibility, the Nikon Z 50mm f/1.8 S prime can add a much brighter option to the same Z-mount kit. This allows the 24-120mm to remain the general-purpose zoom, with the prime reserved for darker environments or stronger background separation.

Optical Design and S-Line Image Quality

The optical formula uses 16 elements arranged in 13 groups. Within that construction are three ED elements, one aspherical ED element and three aspherical elements. ED glass helps control chromatic aberration, where different wavelengths of light can create visible colour fringing around high-contrast edges. Aspherical elements support distortion control and help maintain fine detail across a wide zoom range.

A 24-120mm lens has to perform across several very different optical conditions. The 24mm end demands strong control of wide-angle distortion and edge performance, whereas the 120mm end places different demands on chromatic correction and resolution. The use of several specialised elements allows the optical design to address those competing requirements inside one 5x zoom.

Nano Crystal Coat and ARNEO Coat are used to reduce reflections inside the optical system. This helps preserve contrast when strong light enters the frame from different directions, including backlit portraits, city scenes with artificial lighting and outdoor work with the sun near the image area. The fluorine-coated front element also makes moisture, fingerprints and surface dirt easier to remove during regular use.

For photographers needing substantially wider coverage, the Nikon Z 14-30mm f/4 S ultra-wide zoom can extend an f/4 S-Line kit down to 14mm. Together, the two lenses cover 14mm through 120mm with constant f/4 maximum apertures across both zooms.

Performance And Real-World Capabilities

The practical strength of the Nikon 24-120 is not one individual specification but the number of situations covered without changing lenses. At the wide end it can handle interiors and broad environmental compositions, the middle focal lengths cover everyday photography and people, and the 120mm end provides enough reach for portraits, details and more distant subjects.

Its approximately 630g weight is important in this context. A lens intended to cover a large part of a day's photography needs to remain comfortable on the camera for extended periods. The 24-120mm provides considerably more focal reach than the 24-70mm f/4 S but remains manageable on current full-frame Nikon Z bodies.

Close-focus performance adds another useful dimension. The lens focuses down to 0.35m from the focal plane at every zoom position and reaches a maximum reproduction ratio of 0.39x. That level of magnification allows tight photographs of food, flowers, products, textures and smaller details without moving immediately to a dedicated macro optic.

The consistent minimum focusing distance also simplifies close-range work because the focusing limit does not change as the zoom position changes. At longer focal lengths, 0.39x magnification can create close compositions with stronger compression, making the lens more useful for detail photography than its general-purpose classification might initially suggest.

Multi-Focusing Autofocus System

The NIKKOR Z 24-120mm f/4 S uses Nikon's multi-focusing system with two synchronised autofocus drive units. This design allows separate focusing groups to move in coordination, supporting accurate focus across the zoom range and helping maintain optical correction as focusing distance changes.

Stepping motors drive the autofocus system, producing quiet operation suited to both still photography and video. During stills work, the lens can move quickly between different subject distances. During video recording, quieter focus movement reduces the chance of obvious mechanical sound entering recordings made with nearby microphones.

Internal focusing means focus adjustment takes place through movement inside the optical system instead of extending the external lens barrel simply because focus distance changes. This keeps physical handling more consistent as the lens shifts between close and distant subjects.

A complete Nikon Z setup built around the Nikon Z6 III with 24-120mm f/4 S combines this focusing system with a current-generation full-frame hybrid body, creating a native body-and-lens pairing for mixed stills and video work.

Close-Focus Performance at Every Focal Length

A minimum focusing distance of 0.35m across the entire zoom range gives the Nikon 24-120 more close-range flexibility than many general-purpose zooms. The same minimum distance applies at 24mm, 50mm, 85mm and 120mm, allowing focal length to be changed without suddenly encountering a longer focusing limit.

At the wide end, close focusing can exaggerate the relationship between a nearby subject and its surroundings. At longer focal lengths, the same close-focus distance can isolate smaller subjects and produce a tighter composition with more compressed background perspective.

The 0.39x maximum reproduction ratio does not provide true 1:1 macro reproduction, but it is enough for many everyday close-detail subjects. Food, flowers, jewellery, smaller products and textures can fill a substantial part of the frame without adding a dedicated macro lens to the bag.

Photographers who regularly work at greater magnification can still add a dedicated macro optic from the broader Norwich Cameras lens range, leaving the 24-120mm responsible for general-purpose and moderate close-focus photography.

Handling, Controls and Build Quality

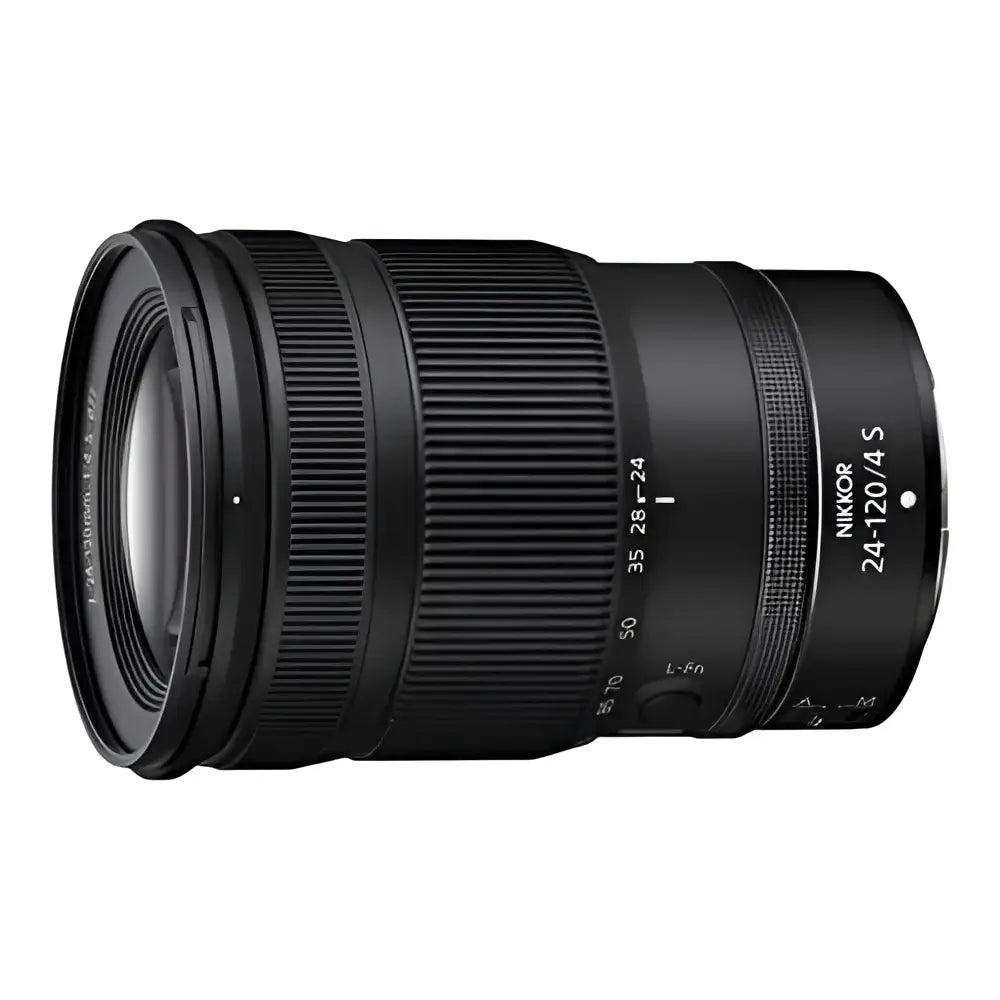

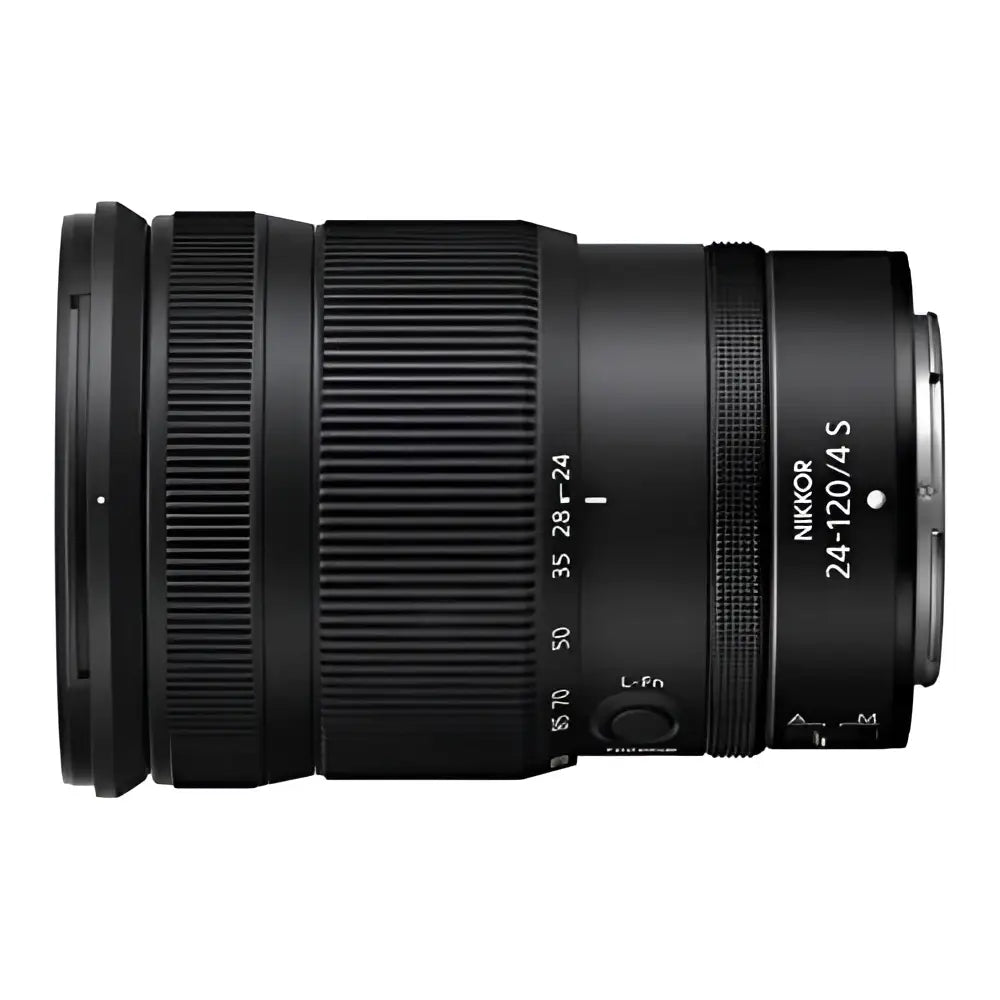

The NIKKOR Z 24-120mm f/4 S measures approximately 84mm in maximum diameter and 118mm in length, with a weight of approximately 630g. Those dimensions make it larger than the compact 24-70mm f/4 S, but the additional physical size supports a much longer 120mm focal length within the same constant-aperture concept.

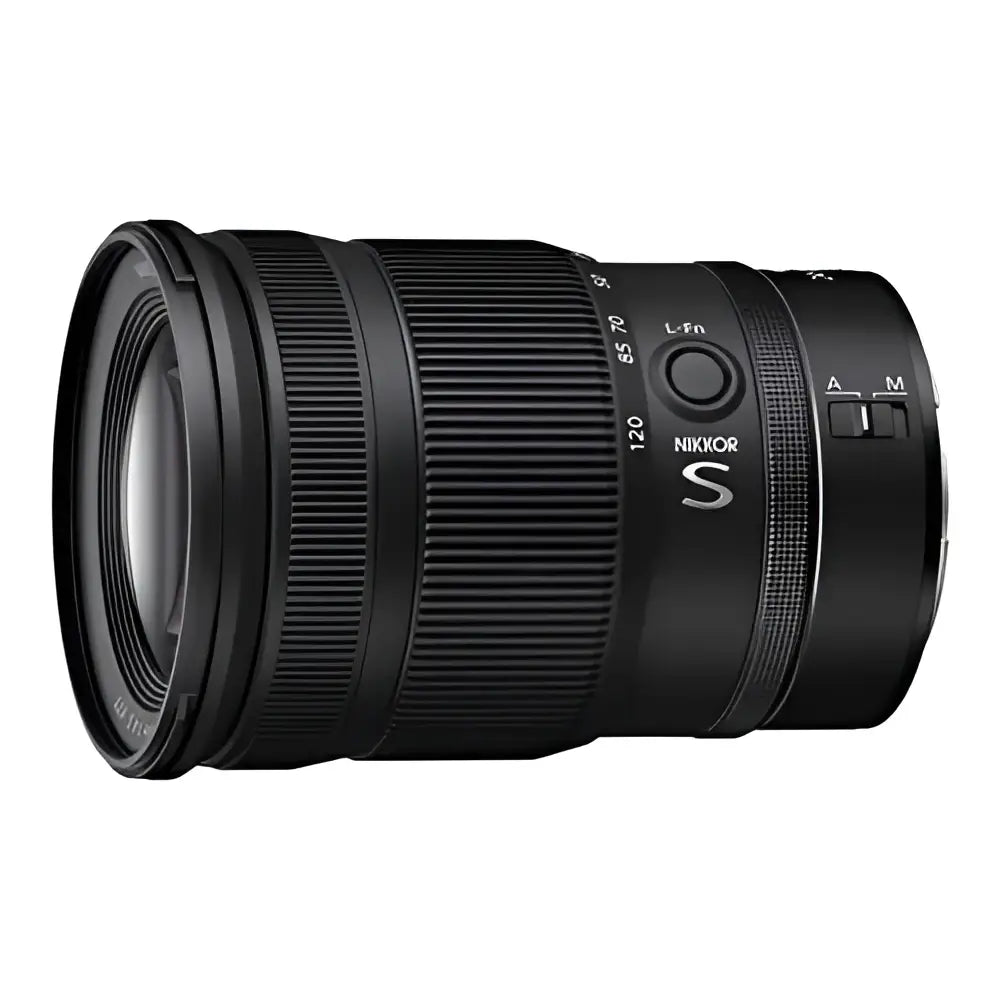

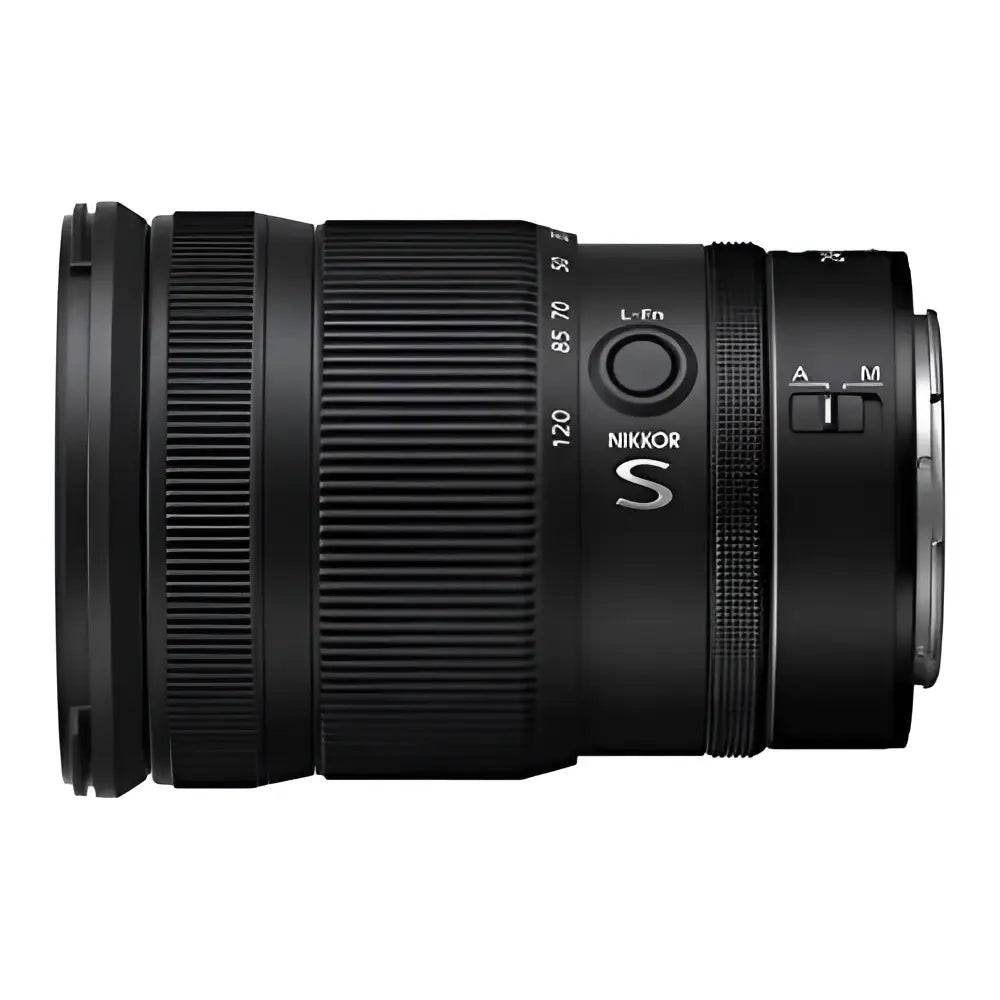

The lens includes a dedicated manual focus ring, a customisable control ring and an L-Fn button. The control ring can be assigned compatible functions through the camera, giving direct access to settings including aperture, ISO or exposure compensation. The L-Fn button can also be assigned supported camera functions, adding another physical control point on the lens barrel.

The front accepts 77mm screw-in filters, a common size among higher-end full-frame lenses. Circular polarisers, neutral-density filters and protective filters can therefore be fitted directly, and photographers with other 77mm lenses may be able to share filters across multiple optics.

Dust- and drip-resistant design measures support outdoor and travel work, and the fluorine-treated front element helps simplify cleaning after exposure to fingerprints, moisture and light surface dirt. This protection does not make the lens waterproof, so normal care remains important in heavy rain and difficult environments.

Advanced Features and Modern Connectivity

The Nikon Z mount provides full electronic communication between the lens and compatible camera bodies. Autofocus commands, aperture operation, focus information and custom control functions are transferred through the mount, allowing the lens to work as part of the camera's wider control and exposure system.

The customisable control ring and L-Fn button expand direct operation beyond basic zoom and focus functions. Photographers can assign frequently used controls according to their shooting setup, reducing the need to move away from the lens and camera controls during active shooting.

For video, Nikon designed the lens to minimise focus breathing and unwanted focus shift. This matters when focus moves between subjects because a large change in angle of view can make the image appear to zoom even though focal length has not changed. Reduced breathing gives focus transitions a more controlled appearance.

The lens does not contain its own optical Vibration Reduction unit. Stabilisation comes from compatible Nikon Z camera bodies equipped with in-body VR. A body like the Nikon Z8 can therefore stabilize the lens through sensor-shift technology, allowing the optical design to remain focused on image quality, focal coverage and handling.

Ideal Use Cases For This Lens

Travel Photography

The 24-120mm range is particularly useful for travel because one lens can move from wide architectural views and interiors to street photography, portraits, food, details and tighter distant compositions. The extra reach over a 24-70mm zoom can reduce the need to carry a second lens during days when changing equipment frequently would interrupt shooting.

At approximately 630g, the lens offers broad focal coverage without reaching the weight of many faster professional zoom combinations. The weather-resistant construction and fluorine-treated front element also support regular outdoor use during trips where environmental conditions can change throughout the day.

Portrait Photography

The 50mm, 70mm, 85mm and 120mm positions all provide useful portrait perspectives. Wider focal lengths can include more surroundings around a person, with the longer end allowing tighter head-and-shoulder compositions from a greater working distance.

The constant f/4 aperture provides controlled depth of field, though photographers who need stronger background blur can add a faster prime. The 120mm position itself helps increase subject separation through working distance and perspective compression even without an f/2.8 maximum aperture.

Events and Everyday Photography

Events often move quickly between wide group photographs, general room coverage, candid moments and tighter details. A 24-120mm zoom can cover these changes without repeated lens swaps, giving the photographer more freedom to respond to different subjects from the same camera position.

For everyday photography, the focal range covers many normal situations encountered during family outings, city photography, informal portraits and general creative work. The constant aperture keeps exposure behaviour predictable as focal length changes.

Outdoor Scenic Photography

The 24mm position provides enough width for expansive natural scenes, coastal locations, mountains, woodland and large environmental compositions. Longer focal lengths can then isolate details inside the same scene, including distant structures, patterns and compressed layers that would occupy only a small portion of a 24mm frame.

Photographers using a high-resolution body can pair the lens with the Nikon Z8 and 24-120mm f/4 S kit, keeping the lens and body combination within the same native Z-mount system.

Video and Hybrid Production

The constant f/4 aperture is useful for video because focal length can change without the maximum aperture becoming smaller. Multi-focusing autofocus, stepping motors, reduced focus breathing and the customisable lens controls also support a mixed stills-and-video workflow.

The 24-120mm range can cover wide establishing views, normal interview framing, close details and tighter telephoto perspectives from one lens. This reduces equipment changes during documentary, event and location-based video production.

24-120mm f/4 Versus Shorter Standard Zooms

The main decision between the Nikon 24-120 and a shorter standard zoom comes down to focal reach, physical size and maximum aperture requirements. A 24-70mm f/4 lens is smaller and lighter, but it ends before several useful portrait and detail focal lengths. The 24-120mm continues through 85mm, 105mm and 120mm without changing the constant f/4 aperture.

That extra reach can be valuable during travel and events because it reduces the frequency of lens changes. The photographer can frame a broad scene at 24mm and then isolate a distant detail at 120mm from the same position. The trade-off is a somewhat larger lens body compared with a shorter f/4 standard zoom.

An f/2.8 zoom provides an additional stop of light and stronger depth-of-field control, but commonly covers a shorter focal range or comes with greater size and cost. The nikon z 24-120 f4 concentrates on a different balance: broader focal flexibility, constant aperture and relatively manageable handling.

Photographers who already know they need substantially longer focal lengths can extend the system with the Nikon Z 70-200mm f/2.8 VR S, leaving the 24-120mm responsible for wide, standard and short-telephoto work.

Limitations and Purchase Considerations

The constant f/4 aperture is practical for many shooting conditions, but it does not gather as much light as an f/2.8 or f/1.8 lens. Indoor events with fast-moving subjects may therefore require a higher ISO setting or additional lighting when shutter speed needs to remain high.

The lens also lacks optical VR inside the barrel. On Nikon Z bodies equipped with in-body stabilisation this is less significant because the camera provides sensor-based compensation. On a body without in-body VR, the lens itself does not add mechanical stabilisation.

Although 120mm provides useful short-telephoto framing, it is not intended to replace a long telephoto zoom for distant wildlife, field sports or subjects that occupy only a small part of the frame. Its emphasis remains broad general-purpose coverage rather than long-distance reach.

At approximately 630g, the lens remains manageable for its 5x range, but photographers whose priority is the smallest possible full-frame setup may prefer a shorter standard zoom. The 24-120mm earns its extra size by extending the usable focal range significantly beyond 70mm.

FAQs

What cameras is the Nikon 24-120 designed for?

The NIKKOR Z 24-120mm f/4 S is an FX-format Nikon Z-mount lens designed primarily for full-frame Nikon Z mirrorless cameras. It can also be mounted on compatible Nikon Z DX bodies, where the smaller sensor produces a narrower field of view.

Is the Nikon Z 24-120mm f/4 S a full-frame lens?

Yes. It is an FX-format full-frame Nikon Z-mount lens. On compatible DX-format Z bodies, the angle of view becomes narrower because of the smaller image area.

Does the Nikon 24-120 keep f/4 throughout the zoom range?

Yes. The maximum aperture remains f/4 from 24mm through 120mm, giving consistent maximum-aperture exposure behaviour across the complete zoom range.

Does the Nikon Z 24-120mm f/4 S have built-in VR?

No. The lens does not contain an optical Vibration Reduction unit. Compatible Nikon Z camera bodies with in-body stabilisation can provide sensor-based vibration compensation.

How close can the Nikon 24-120 focus?

Minimum focusing distance is approximately 0.35m from the focal plane at every zoom position, allowing close framing throughout the 24-120mm range.

What is the maximum reproduction ratio?

Maximum reproduction ratio is approximately 0.39x. This provides useful close-detail capability but does not provide true 1:1 macro reproduction.

What filter size does the Nikon Z 24-120mm f/4 S use?

The lens accepts 77mm screw-in filters with a 0.75mm thread pitch.

How much does the Nikon 24-120 weigh?

The lens weighs approximately 630g.

Is the Nikon 24-120 suitable for video?

Yes. Its constant f/4 aperture, quiet stepping-motor autofocus, reduced focus breathing, control ring and broad focal range support hybrid stills and video work.

What is the difference between the Nikon Z 24-120mm f/4 S and 24-70mm f/4 S?

Both start at 24mm and maintain a constant f/4 maximum aperture. The 24-120mm extends to 120mm, providing significantly more short-telephoto coverage. The 24-70mm is physically more compact and focuses on the traditional standard-zoom range.

Can the Nikon 24-120 be used for portraits?

Yes. The 50mm, 70mm, 85mm and 120mm positions all provide useful portrait perspectives. Longer focal lengths can create stronger perspective compression and greater visual separation between the subject and background.

What comes in the retail box?

Standard supplied accessories for this model include the LC-77B front cap, LF-N1 rear cap, HB-102 lens hood and CL-C2 lens case.
