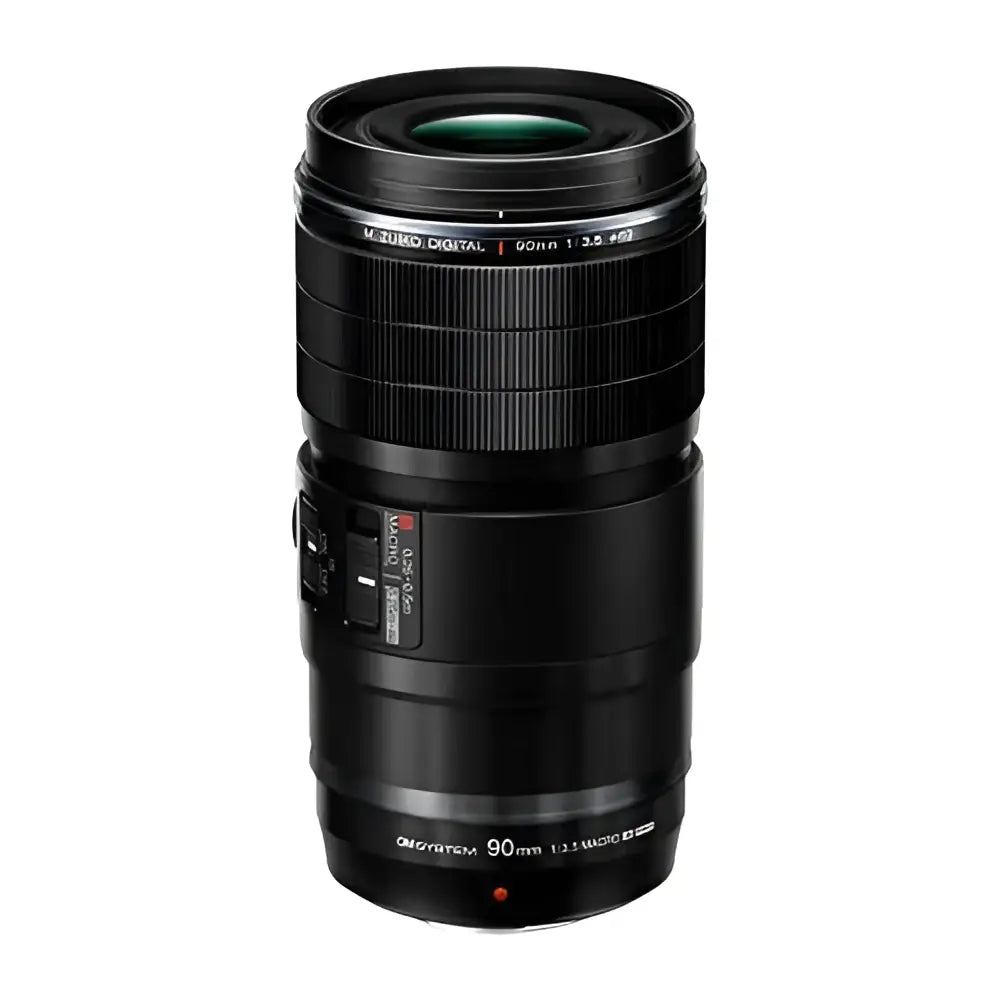

OM System M.Zuiko Digital ED 90mm F/3.5 Macro IS Pro Lens

Olympus 90mm macro Overview

The OM System M.Zuiko Digital ED 90mm F/3.5 Macro IS Pro Lens gives Micro Four Thirds photographers a way to fill the frame with subjects that ordinary close-focusing lenses leave small. A 90mm focal length produces the angle of view associated with 180mm on a full-frame camera. The lens reaches life-size reproduction in its standard focusing range, then extends to 2:1 actual magnification in S-Macro. At that setting, an object measuring 5mm across projects at 10mm across the sensor.

That capability changes the scale of practical subjects. The surface of a beetle’s wing, the fibres around a flower’s centre, a watch movement and the texture of a small mineral specimen all gain enough presence in the frame to become subjects in their own right. The lens also focuses to infinity, leaving room for tightly framed flowers, natural patterns and distant details beyond dedicated macro work.

High magnification brings demanding conditions with it. At 2:1, a slight movement towards or away from the subject shifts the focal plane across a significant part of the composition. Depth of field becomes extremely thin, even at a modest aperture. OM System equips the lens with optical stabilisation, close-range autofocus, a focus-limit switch and a manual-focus clutch to help manage those conditions. None removes the need for careful lighting or a steady shooting position when the subject becomes exceptionally small.

A Direct Assessment of the Lens

The strongest reason to use this 90mm macro lies in its combination of 2:1 reproduction, autofocus and stabilisation. Many macro lenses stop at 1:1. Others reach higher magnification only through manual focusing or extra equipment. The additional reproduction forms part of the lens’s normal operation, with a dedicated S-Macro position on the focus-limit switch.

The 90mm focal length also gives the lens a different working character from a short macro optic. At matching reproduction ratios, the longer design generally leaves greater room to position light and approach a living subject. That advantage needs a qualification: the front of any lens still moves close to a subject at extreme magnification. At 2:1, space for a diffuser becomes tighter than the 180mm-equivalent angle of view might suggest. The supplied hood can further restrict that space during the closest work.

For large flowers, food and occasional detailed photographs, the specialist capability may exceed what the subject demands. For very small insects, intricate product components and photographers already committed to a Micro Four Thirds system, the increased reproduction has a clear practical purpose. The decision rests on subject size and working method, not on the headline magnification alone.

Magnification: Standard Range and S-Macro

The standard focus setting covers subjects from 0.25m to infinity and reaches 1:1 at its closest point. At 1:1, a 10mm detail projects at approximately 10mm across the sensor. This range accommodates ordinary telephoto photographs, larger close-ups and conventional life-size macro work without a change of lens. It also leaves autofocus access to more distant subjects.

S-Macro narrows the working range to nearby subjects and extends maximum reproduction to 2:1 at a minimum focusing distance of 0.224m. A 10mm detail then projects at approximately 20mm across the sensor. The narrower range suits tiny subjects whose important features need substantial space in the finished image. Moving into S-Macro does not make every close photograph better: an entire butterfly or a large flower may no longer fit comfortably in the frame at maximum reproduction.

Minimum focusing distance measures from the camera’s sensor plane, not from the front glass. That distinction affects lighting and subject access. A camera placed 0.224m from an insect leaves considerably less open space in front of the mounted lens. At the closest setting, a flash diffuser, nearby foliage and the hood all compete for that space. The broader relationship between macro focal length and working distance helps put the 90mm design in context.

OM System describes the lens’s maximum framing as 4× in full-frame-equivalent terms. The lens itself achieves 2:1 optical magnification; the smaller Micro Four Thirds sensor records a tighter area around the projected subject. Those two facts work together, but they describe different properties. The distinction matters when assessing photographs or specifications from another format, since sensor size affects framing without changing the physical reproduction ratio of a lens.

Focus Control at Close Range

Autofocus remains available across the lens’s macro range, including S-Macro. That matters during field work, when a subject may shift position between composition and exposure. A small insect moving around a stem gives the camera little time to acquire focus; automatic focusing can establish a useful starting point before a final adjustment. At very high reproduction, the intended detail may still demand manual placement because the sharp region spans only a narrow slice of the subject.

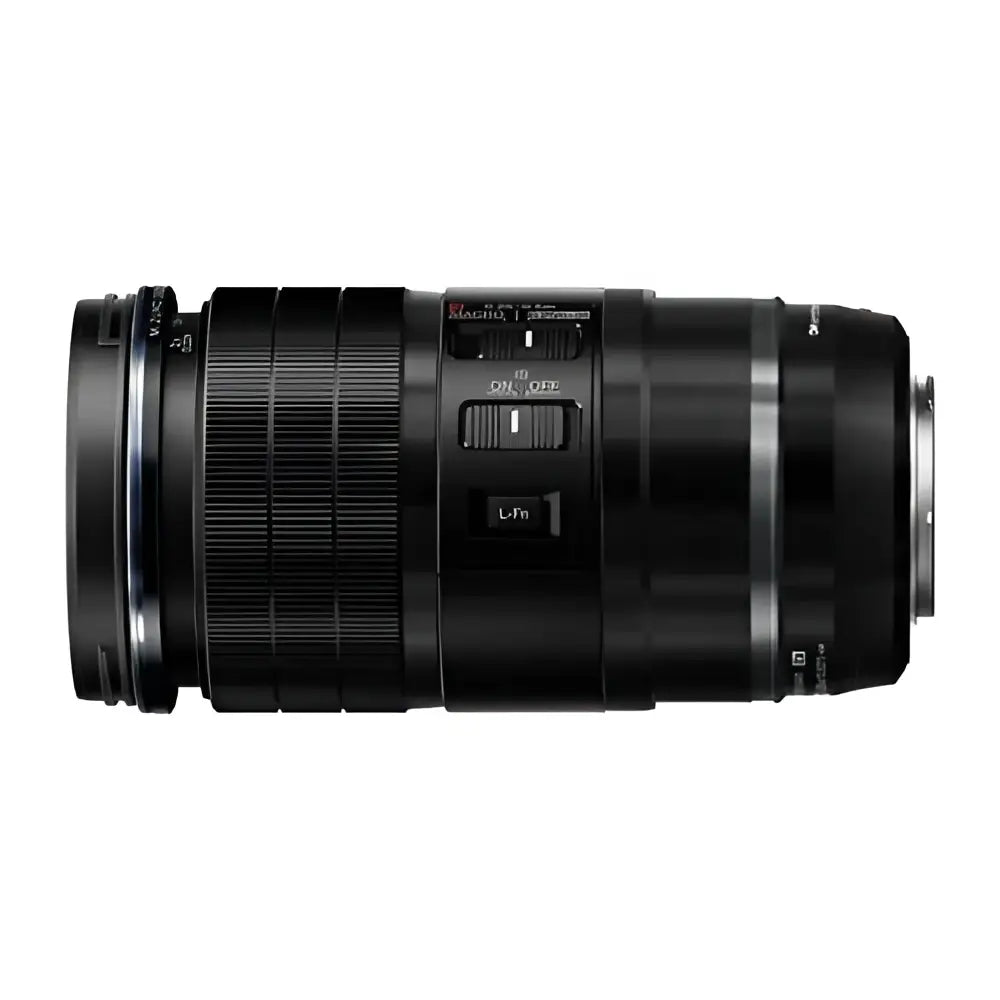

The three-position focus-limit switch keeps the mechanism inside a useful distance range. S-Macro serves extreme close-ups; the middle position confines focus to nearby subjects; the standard position extends through to infinity. Limiting focus travel reduces unnecessary searching when the approximate distance is already known. For a stationary flower or a watch component, the close-range position prevents the lens from travelling through distant focus. For mixed nature work, the standard position restores access to subjects farther away.

Pulling the focus ring engages the manual-focus clutch. That physical control suits a deliberate focal placement on an eye, an engraving or the leading edge of a petal. Some photographers set a fixed focus position and move the camera a fraction forwards or backwards to bring the desired detail into focus. Others rely on autofocus for the initial position, then refine it through the clutch. Both approaches respond to the same problem: tiny changes in camera-to-subject distance have a large effect at 2:1. The relationship between manual focus, light and subject movement appears throughout practical macro photography technique.

A tripod or focusing rail gives greater control over repeatable adjustments for static studio subjects. Handheld work demands a different rhythm, with the camera held steadily and the exposure made when the intended plane of detail comes into focus. The lens supports both methods; neither guarantees front-to-back sharpness from a single frame at maximum reproduction.

Optical Stabilisation and Subject Movement

The lens contains its own image-stabilisation mechanism. On compatible OM System bodies, Sync IS coordinates the lens with the camera’s stabilisation system. OM System rates that combination at up to seven stops under specified test conditions. The figure describes controlled measurement, not a promise of seven stops for every insect, camera position or magnification. At close range, forwards-and-backwards movement can shift focus even when conventional camera shake stays under control.

Stabilisation proves useful during handheld composition. A steadier view helps place a narrow frame around a flower, track a slow insect or inspect fine detail before exposure. For a relatively still subject in natural light, it can also reduce blur from camera movement at slower shutter speeds. A moving antenna, swaying stem or vibrating wing introduces movement within the scene; optical correction cannot arrest that motion.

The difference becomes clear when working near the ground. A photographer may hold the camera steadily enough for the background and a still leaf to remain sharp, yet a flower head moves slightly in the breeze. A faster shutter speed, sheltered position or short flash burst addresses that subject movement. The OM System OM-1 Mark II body adds a compatible camera system with in-camera focus-stacking functions, though a moving subject can also disrupt a stack. Stabilisation, lighting and stacking solve related but distinct problems.

Optical Design and Image Rendering

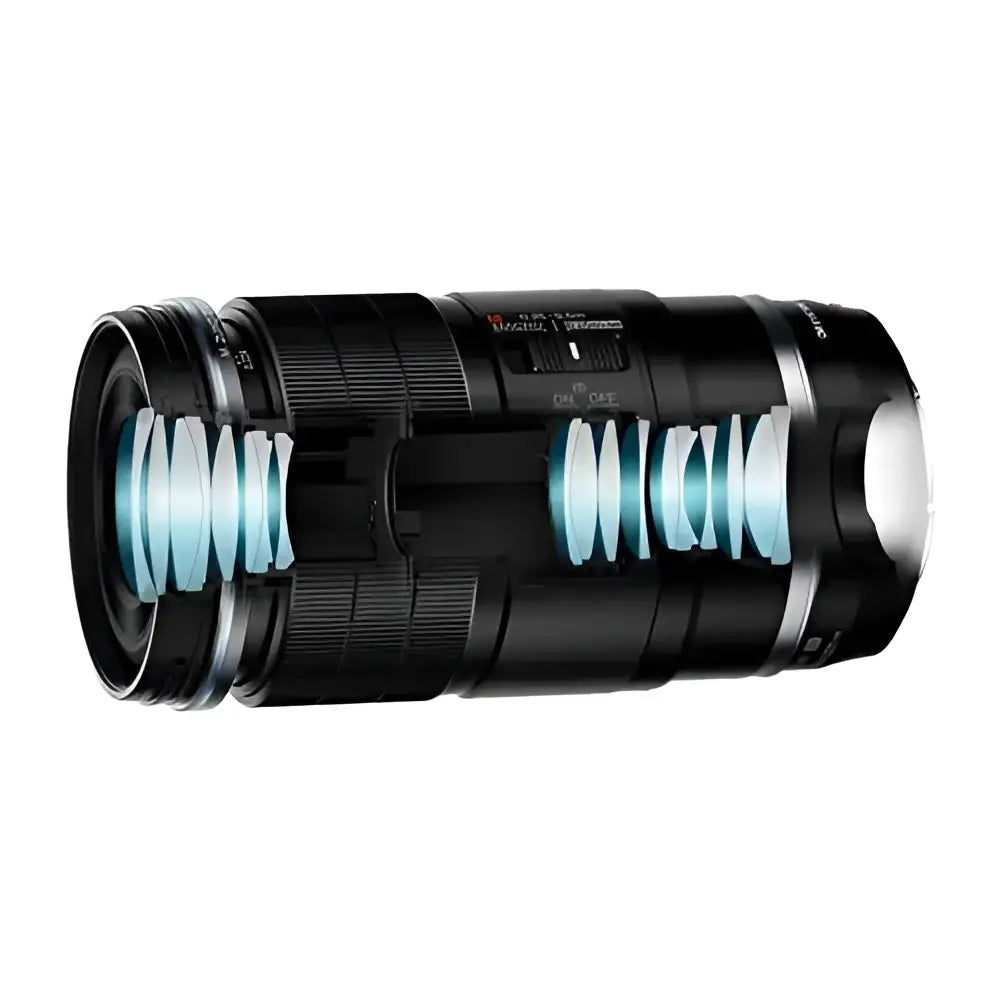

OM System builds the lens from 18 elements in 13 groups, including specialised glass intended to control colour fringing and preserve fine detail at close focusing distances. The optical design carries a demanding task: small subjects often contain abrupt transitions between bright highlights and dark edges, and high magnification makes faults easier to notice. Reflective jewellery, translucent insect wings and backlit plant fibres all place different demands on contrast and colour correction.

The f/3.5 maximum aperture and seven-blade diaphragm give the lens control over subject separation beyond the macro range. At close distances, background blur appears readily because of the magnification and narrow angle of view. Stopping down increases the thickness of the sharp region, though no ordinary aperture transforms a deeply layered 2:1 subject into a fully sharp single frame. Very small apertures can also soften fine detail through diffraction. The useful aperture depends on the amount of depth needed, available light and the intended final size of the image.

Ideal Use Cases for This Lens

Small insects and other living subjects

A small insect presents several problems at once. It may react to the approaching lens, move without warning, sit among stems that obstruct the frame and carry reflective surfaces that resist harsh direct light. The 90mm focal length helps keep a useful position around the subject at moderate magnification. The focus limiter reduces long searches when the insect remains within a known distance range, and optical stabilisation supports handheld framing in awkward positions.

Maximum 2:1 reproduction suits details on very small insects, though it also narrows the visible area and makes movement harder to follow. An entire dragonfly, butterfly or larger beetle often calls for a lower magnification setting. For a moving subject, enough shutter speed or a short flash burst matters more than simply closing the aperture. The role of the camera body, light and subject behaviour receives wider treatment in the macro camera system assessment.

A flash diffuser also changes the character of insect photographs. Bare light can produce hard reflections on a shell or turn a delicate wing into a bright patch. Softened light preserves shape and colour without demanding a very slow exposure. The lens hood may need removal at the closest distances if it obstructs the light or leaves too little room around the subject.

Flowers, fungi and botanical detail

Flowers offer a broad range of scale. A single blossom may fill the frame without S-Macro, yet pollen grains, stamens and petal texture benefit from higher reproduction. The lens gives room to move between those views without changing equipment. Its narrow field also helps exclude distracting vegetation behind a subject, leaving colour and form to carry the composition.

Stabilisation assists when a tripod cannot reach a flower near a path or among dense stems. Wind remains the main limitation. A plant moving only slightly can shift its important detail through the focal plane during an exposure or between frames of a stack. Sheltered conditions, patience and a suitable shutter speed often contribute more than another increment of magnification. The smaller OM System OM-5 Mark II body makes a practical Micro Four Thirds pairing for photographers carrying a field kit on long walks.

Fungi and damp woodland details bring the lens’s weather protection into consideration. Moist ground, spray and light rain create challenging conditions for repeated low-level compositions. IP53-rated protection supports that work when the camera body and other fitted equipment offer suitable protection too. It does not permit immersion or careless exposure to water.

Jewellery, watches and manufactured objects

A stationary product removes unpredictable subject movement but exposes every small fault in setup. Jewellery often carries polished surfaces, fine engraving and edges that catch uncontrolled reflections. A watch may need a sharp dial, hands and case detail across several depths, far beyond the thin focal region of one extreme macro exposure. The 90mm lens supplies reproduction for tiny components; a controlled light arrangement and a stable camera position supply the consistency needed to use it.

The longer focal length leaves room to place reflectors and diffusers around many tabletop subjects. At 2:1, that room tightens, especially with the hood fitted. A tripod and focusing rail make small framing changes easier to repeat. Focus bracketing captures a sequence of focal positions for later combination, provided the object and camera stay still throughout. Highly reflective products may also require changes in lighting angle between setups, since extra magnification makes unwanted reflections highly visible.

Natural textures and documentation

The lens also suits bark, stone, fabric, coins, stamps and small mechanical parts. These subjects often reward a direct, carefully lit record of surface structure. A coin may need even illumination across a flat face; bark benefits from light arriving at an angle to reveal relief. A transparent object presents another challenge because its outline and internal structure respond differently to the same source of light.

The 90mm focal length helps keep a consistent camera position when photographing a series of small objects. Standard reproduction handles larger examples, with S-Macro reserved for fine marks or small components. Accurate documentation still depends on scale, colour and lighting discipline. The lens provides detail; it cannot establish measurement or colour consistency on its own.

Micro Four Thirds Compatibility

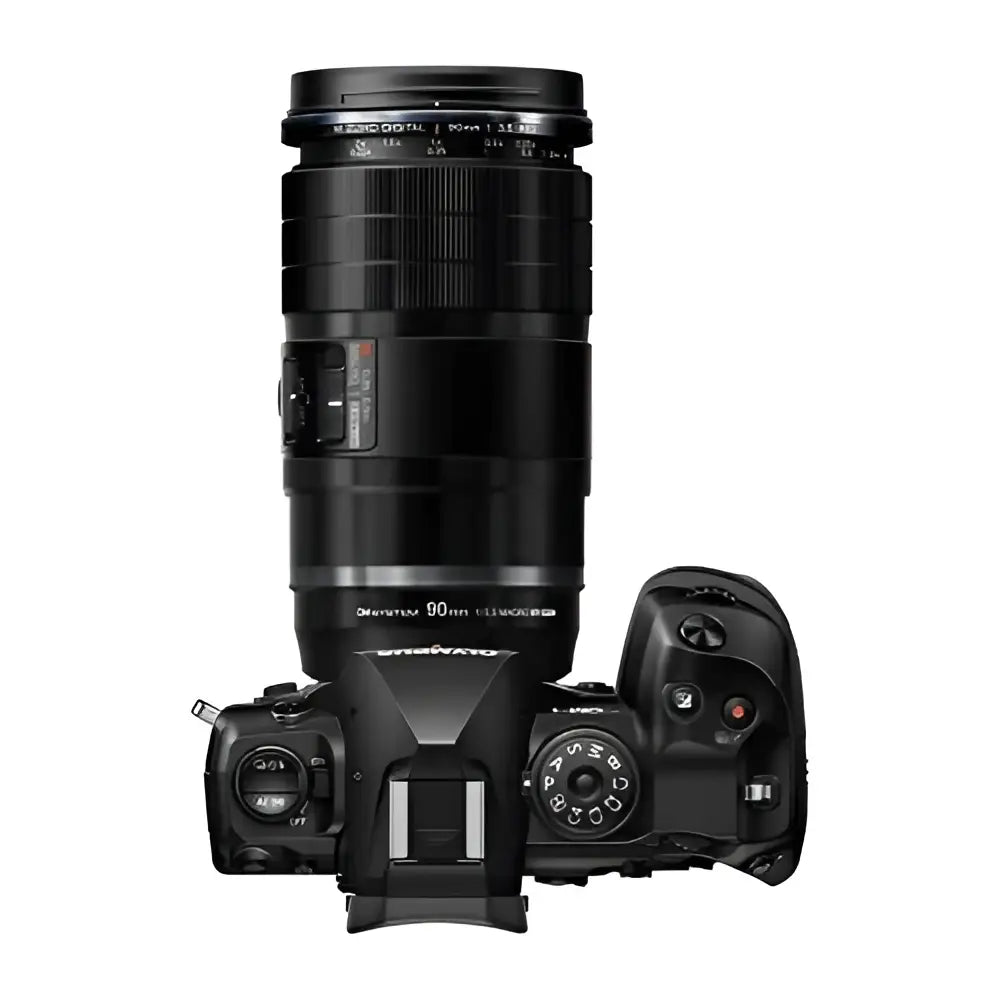

The lens mounts on compatible OM System, Olympus and Panasonic Micro Four Thirds cameras. That physical compatibility gives existing owners a direct route into higher magnification without changing mounts. Camera-based functions still vary. Sync IS requires a compatible OM System body, and focus-bracketing or stacking behaviour depends on the camera’s own controls and supported lens functions. Panasonic owners gain use of the lens, though they should not assume identical combined-stabilisation performance.

The OM System OM-3 body offers another current mount option with a different handling layout. A smaller body changes the balance of a 453g macro lens during long handheld sessions, so grip comfort and camera controls deserve attention alongside sensor specifications. The lens’s physical manual-focus clutch and limit switch remain directly accessible regardless of body style.

Older Olympus equipment and current OM System models share the Micro Four Thirds lens mount, but their camera functions differ by generation. The broader Olympus and OM System range helps place those bodies within the same system. For this lens, the most relevant distinctions concern stabilisation coordination, focus automation and the handling of close-range sequences.

Advanced Features and Camera Integration

The lens contributes optical stabilisation, autofocus, a focus-limit switch, a manual-focus clutch and an L-Fn control. The camera supplies recording formats, file transfer, wireless operation and any in-camera stacking process. Treating those roles separately prevents a lens specification from implying functions that belong to a particular body.

An OM System body with focus bracketing can capture several images at different focus positions. A body with in-camera focus stacking can combine an eligible sequence internally. The first function records the source frames; the second produces a composite. A stationary subject, stable camera position and consistent lighting improve both methods. Wind, a walking insect or changing reflections can create mismatched frames even when the lens focuses accurately. For a kit that also covers ordinary photography, an OM-1 Mark II with a 12–40mm F2.8 Pro II zoom pairs a standard focal-length range with this specialist macro optic. An OM-5 Mark II with a 12–45mm F4 Pro zoom follows a lighter approach to everyday and close-up work. In both arrangements, the 90mm lens handles subjects too small for the general zoom to reproduce at the required scale.

Teleconverters and Extreme Reproduction

OM System lists the MC-14 and MC-20 teleconverters as compatible with the 90mm Macro IS Pro. The MC-14 raises maximum actual magnification in S-Macro to approximately 2.83:1 and changes the combination’s maximum aperture to f/5. The M.Zuiko MC-20 2.0x teleconverter extends reproduction to 4:1, with an f/7.1 maximum aperture for the combination.

Those figures describe a substantial increase in subject scale, accompanied by harder working conditions. The visible field becomes very small, accurate focus placement grows less forgiving and less light reaches the sensor at the combination’s maximum aperture. A controlled studio subject may tolerate a tripod, rail and repeated frames. A living insect may move before a carefully prepared sequence finishes. The converter therefore serves a distinct high-magnification purpose, rather than a routine attachment for every close-up.

A converter also changes focal length and minimum focusing characteristics. For ordinary flowers or insects that already fill the frame at 1:1, the bare lens keeps the setup simpler and retains its f/3.5 maximum aperture. At 4:1, lighting and support become central parts of the equipment decision. The converter remains a separate accessory; it does not come in the standard lens box.

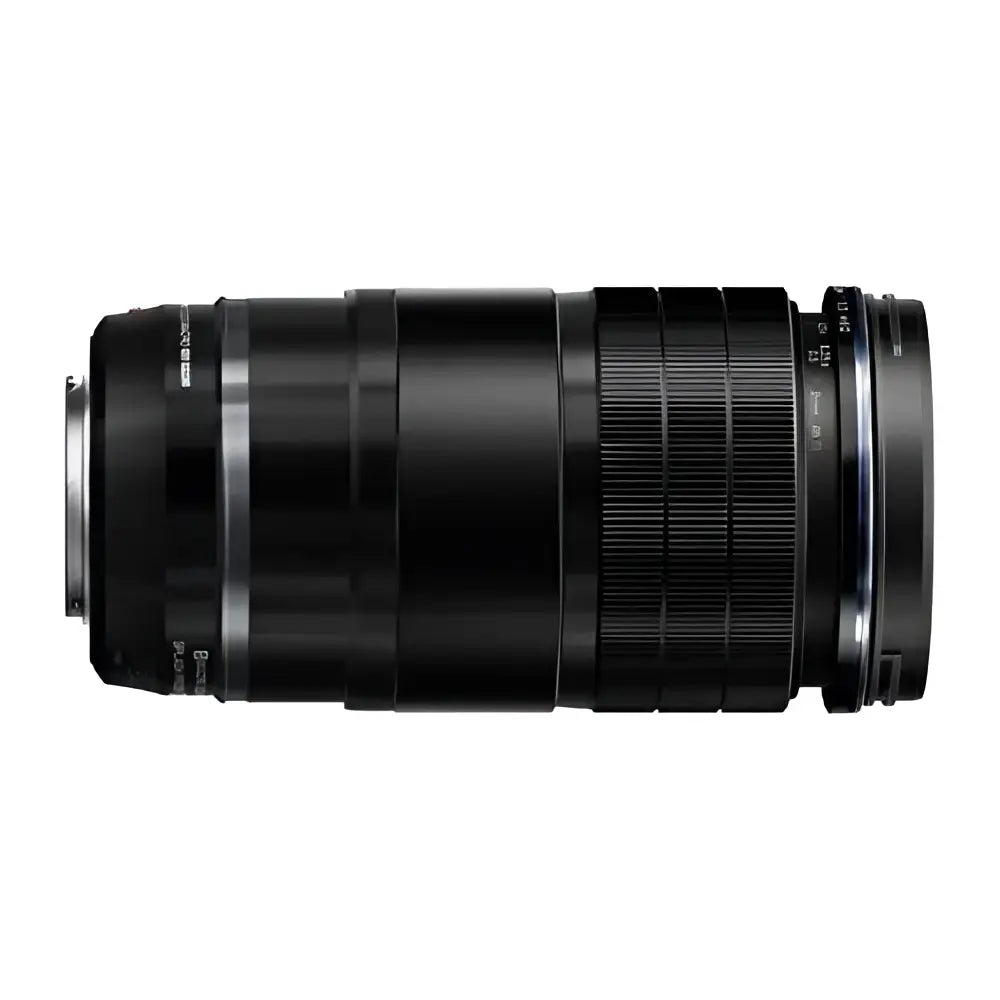

Construction, Weather Protection and Handling

OM System specifies IP53-rated dust and splash resistance under its stated conditions with a suitably protected body. The rating supports outdoor work around damp vegetation, spray and dust. It does not make the lens waterproof, and exposed accessories can reduce the protection of the complete setup. A fluorine coating on the front element helps with routine cleaning after moisture or fingerprints. At approximately 453g without caps and hood, the lens adds noticeable weight to a compact Micro Four Thirds body but avoids the bulk associated with some larger-format telephoto macro systems. Its 136mm length gives the supporting hand a clear position beneath the barrel. The focus-limit switch and clutch keep frequently used close-range controls on the lens, reducing the need to move through camera menus when a subject changes distance.

The included hood helps shield the front element during ordinary shooting. For extreme close-ups, its extra length can intrude into the already limited gap around a subject or obstruct light from a nearby flash. Removing it for a tightly lit 2:1 setup represents a practical adjustment, not a change to the lens’s magnification. A 62mm front thread accepts appropriately sized screw-in filters.

The Lens Beyond Macro Work

The standard focus range extends to infinity. That gives the 90mm lens use for isolated flowers, details on distant trees, patterns across a building and tight compositions during a walk. Its 180mm-equivalent angle of view compresses the visible surroundings into a narrow frame. A subject can stand apart from a distant background without a high magnification setting.

This remains an f/3.5 specialist, not a fast portrait lens. Indoor portraits under weak light may demand higher sensitivity or extra lighting. Outdoor details and carefully framed head-and-shoulders photographs present a better match for its focal length and aperture. The fixed focal length also means framing changes through camera position, a characteristic shared by other prime lenses. A general zoom serves a separate purpose. The M.Zuiko Digital ED 12–100mm F4 IS Pro covers wide views through telephoto details, but it does not replace the 90mm lens’s 2:1 reproduction. For subjects beyond practical macro range, a longer M.Zuiko 40–150mm F4 Pro offers another kind of reach. The distinction between macro reproduction and ordinary telephoto framing runs through the main lens categories: a distant subject appearing large in a photograph does not automatically indicate high optical magnification.

Practical Setup and Purchase Considerations

A complete macro setup extends beyond the lens and body. Small moving subjects benefit from dependable light and a diffuser with enough room to sit near the front of the lens. Stationary objects benefit from stable support and careful control over reflections. At 2:1, a slight shift in camera position can change composition substantially; a rail or firmly positioned tripod helps when repeated frames need consistent alignment.

Camera selection also affects the workflow. Focus bracketing and stacking become valuable when a three-dimensional subject needs detail across several depths. A body with comfortable controls for low-level shooting reduces strain during field work. Good grip balance matters when the lens remains mounted for an extended walk. Those considerations deserve attention before adding a teleconverter whose magnification makes every handling difficulty greater.

The lens suits photographers who regularly encounter subjects too small for a conventional 1:1 optic, especially in a Micro Four Thirds system already built around outdoor work. Larger flowers, food and occasional household details seldom require the full S-Macro range. That distinction helps place the lens’s specialist specification against the work expected from it, without treating its highest number as a requirement for every photograph.

FAQs

What does 2:1 magnification mean on this lens?

At 2:1, the lens projects a subject onto the sensor at twice its real physical size. A detail measuring 5mm across projects at approximately 10mm across the sensor. S-Macro supplies that reproduction without a teleconverter.

Does the Olympus 90mm macro lens fit Panasonic Micro Four Thirds cameras?

The Micro Four Thirds mount fits compatible Panasonic bodies. Functions coordinated between lens and camera, including OM System Sync IS, depend on the particular body; physical lens compatibility alone does not confer every OM System camera function.

How close does the lens focus?

The minimum distance measures 0.25m in the standard range and 0.224m in S-Macro. Both measurements run from the sensor plane. The physical gap in front of the lens measures considerably less.

Does this lens need a tripod?

A tripod helps with static subjects, repeated focus positions and controlled product photographs. Handheld work remains practical with appropriate shutter speed, lighting and stabilisation. Extreme magnification makes steady camera position particularly valuable.

Can stabilisation freeze a moving insect?

No. Stabilisation counters camera movement. Subject movement calls for a suitable shutter speed, a short flash exposure or a calmer moment.

What filter size does the lens take?

The front filter thread measures 62mm.

What changes when using the MC-20?

The compatible MC-20 raises maximum actual magnification to 4:1 in S-Macro. The combination’s maximum aperture becomes f/7.1, increasing the need for light and stable support.

Does the lens work for photographs beyond macro distance?

Yes. Standard focusing extends to infinity, allowing narrow telephoto views of flowers, natural details and selected distant subjects.
